Chaoya has launched a 37mm brush geared motor, which is a combination of a 37mm eccentric gearbox with a 555 brush motor, with high torque output at low rotational speeds and very good performance. It can be used in intelligent robots, coffee machines, blenders, automotive parts and other fields, with a wide range of product applicability, this gearmotor has a 12V or 24V DC power supply scheme, customers can choose according to the actual use of demand, we can also be in accordance with the actual needs of customers' products for technical adjustments or programme evaluation, is committed to providing customers with satisfactory products and services.

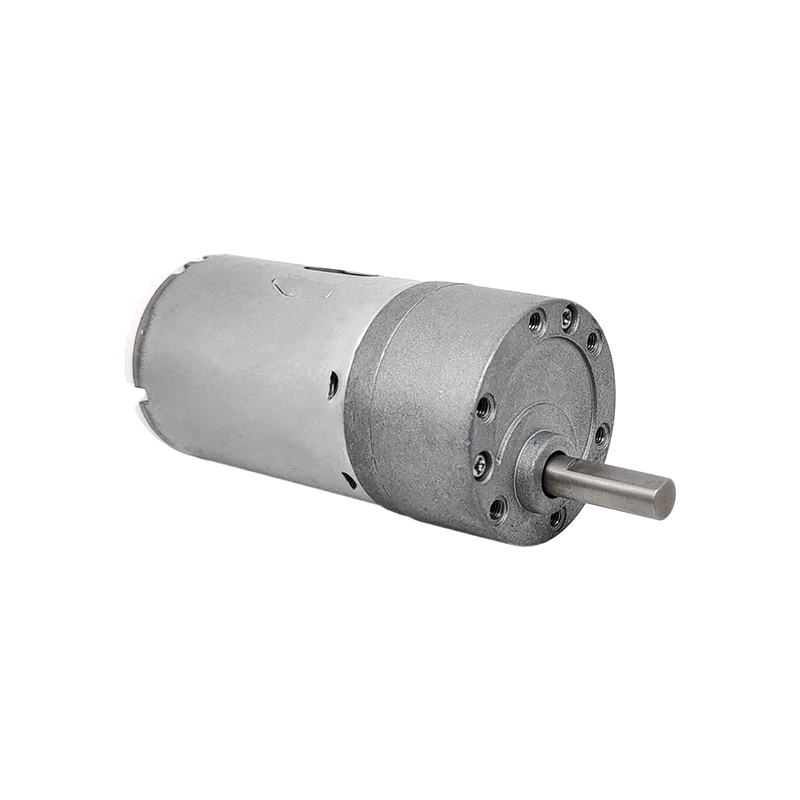

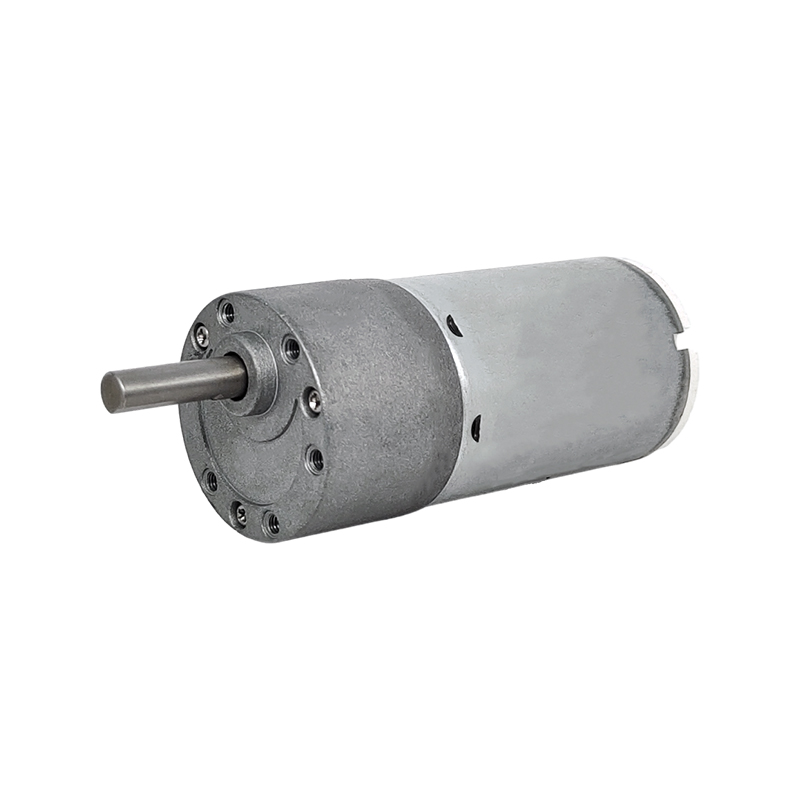

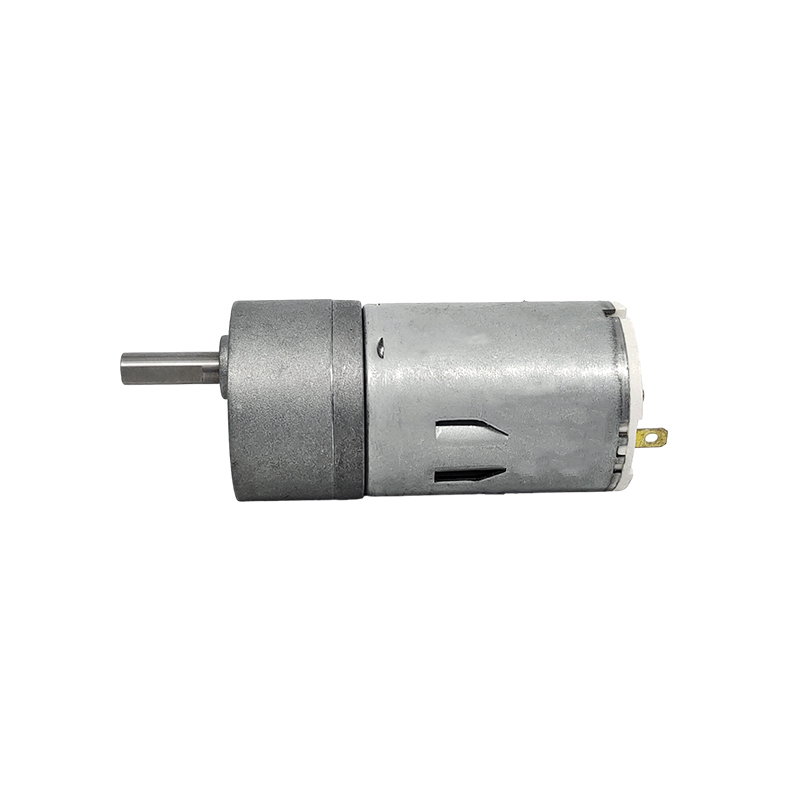

Chaoya has a 37GB555 DC brush geared motor, the diameter of this motor is about 37mm, equipped with eccentric shaft gearbox, can achieve high torque output under low speed operation, using 12V or 24V DC power supply mode operation.
Chaoya's 37mm geared motor has a wide range of applications and can be used in intelligent robots, automotive parts, home appliances and other fields, making the product highly applicable. At the same time, this gear motor also has a variety of gear ratios to match the actual functional needs of customers' products, which can meet the different product needs of different customers.
Chaoya is committed to providing customers with satisfactory motor products and services, customers can send us the required motor parameters and performance requirements for evaluation, or send samples to us for actual testing, in order to facilitate us to understand the real needs of the motor, to make parameter matching or reasonable improvement. Chaoya also has other different sizes of geared motors available for customers to choose from, if you have related motor needs, you are very welcome to contact us!
| Motor Parameters: | |||||||||
| Model | Voltage(V) | No Load Rotating Speed(rpm) | No-load current(mA) | Load torque(gf.cm) | Load Rotating Speed(rpm) | Load Current(A) | |||
| RC555 | 24 | 7500 | 80 | 320 | 6800 | 0.4 | |||
| Motor +GearBox Parameters: | |||||||||
| Gear Motor Model | Reducer Ratio | 13 | 30 | 50 | 100 | 120 | 300 | 350 | 630 |
| 37GB-RC555 | No Load Rotating Speed(rpm) | 577 | 250 | 150 | 75 | 63 | 25 | 21 | 12 |
| Rated Torque(kgf.cm) | 2.83 | 6.53 | 9.6 | 19.2 | 20.35 | 30 | 30 | 30 | |
| Rated Rotating Speed(rpm) | 523 | 227 | 136 | 68 | 57 | 23 | 19 | 11 |
