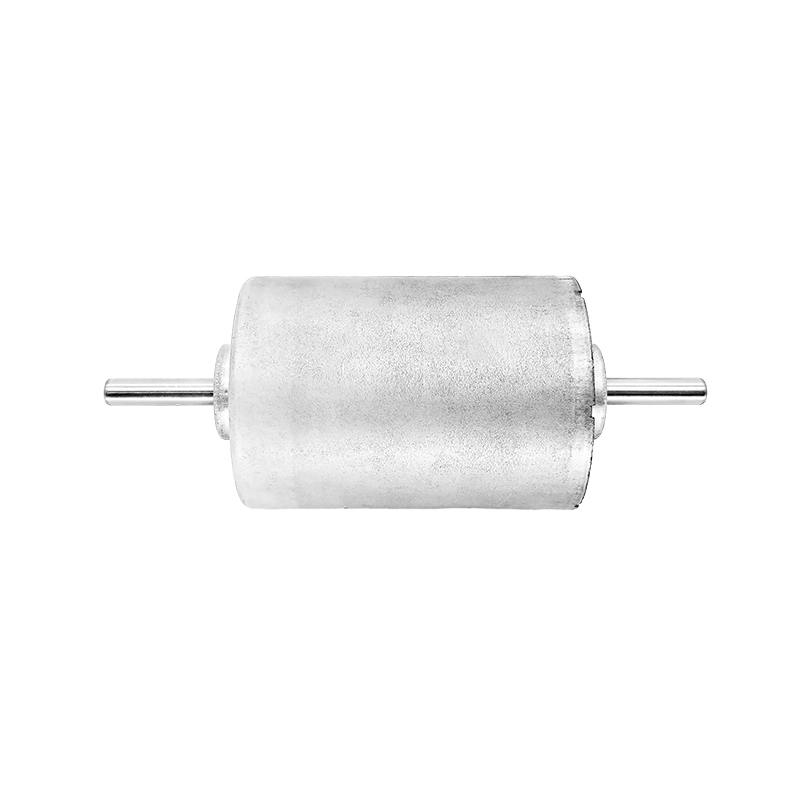

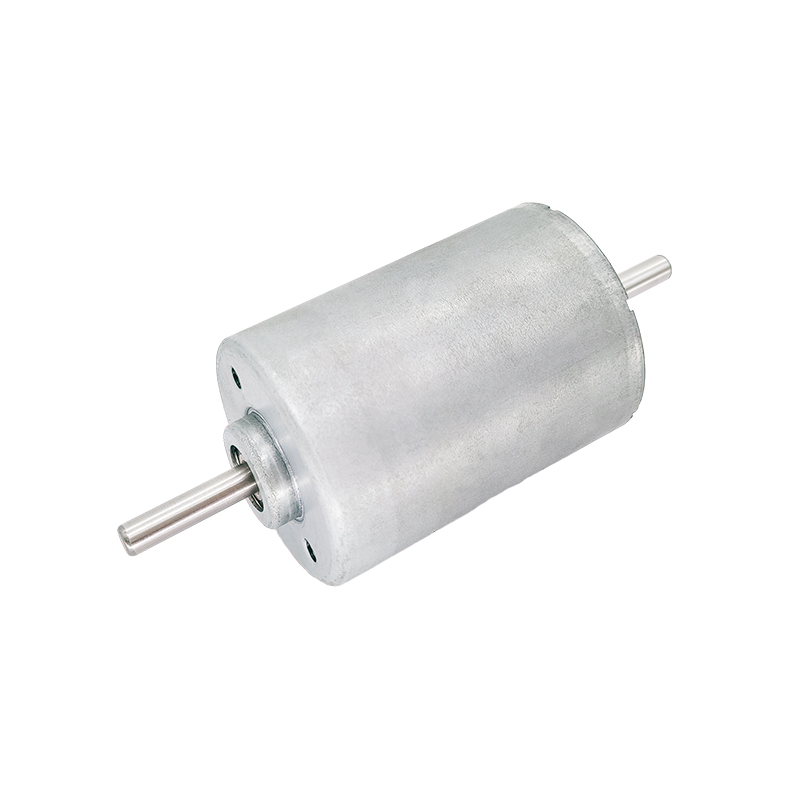

This BL4260 brushless motor from Chaoya, with an outer diameter of 42mm and a body length of 60mm, can run on 12V or 24V DC voltage, with higher speed, low noise, longer service life and lower maintenance cost, which meets the customer's needs for the relevant motor functions, and at the same time, Chaoya's BL4260 brushless motor can be fitted with 42mm planetary reduction gearboxes, which can reduce the motor speed and increase the motor torque, thus improving the motor load efficiency. The BL4260 brushless motor can be fitted with a 42mm planetary gearbox, which reduces the motor speed and increases the motor torque, thus increasing the motor load. Chaoya also provides other motor solutions for customers to choose.
Chaoya also provides other motor solutions for customers to choose from. Chaoya has a BL4260 brushless DC motor with a diameter of 42mm and a length of 60mm, which can be powered by 12V or 24V DC voltage, equipped with a driver and Hall encoder, with a rotational speed of about 4300RPM, and can also be adjusted according to the customer's needs.
The BL4260 brushless motor from Chaoya is designed with internal rotor structure and the shell is made of finishing shell. The BL4260 brushless motor can be used in many kinds of home appliances such as rice cookers, lawn mowers, sweeping robots, etc. The BL4260 brushless motor is also suitable for other products that have relevant parameter requirements, and the BL4260 brushless motor has stable performance, low noise and long life during operation.
Besides BL4260 brushless motor, Chaoya also provides other sizes of brushless motors for customers to choose, and this motor can be adapted to 42mm planetary gearbox, so that the motor can get higher torque at low speed. Chaoya welcomes your inquiries.
| Model | Operating Voltage(V) | No Load | Maximum efficiency | Maximum Power | Stall | Rotating Direction | |||||||||
| Current (A) | Rotating Speed(RPM) | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Efficiency | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Torque(mN.M) | current(A) | |||
| BL4260 | 24 | 0.18 | 4311 | 57.14 | 1.124 | 3716 | 22.23 | 82% | 206.9 | 3.597 | 2156 | 46.7 | 413.8 | 7.013 | CW/CCW |
