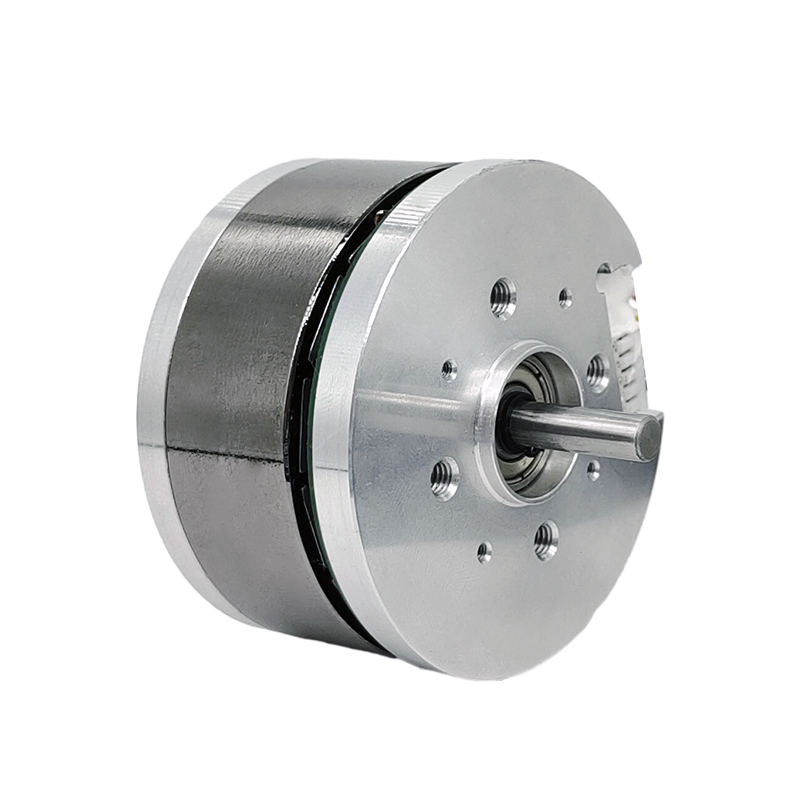

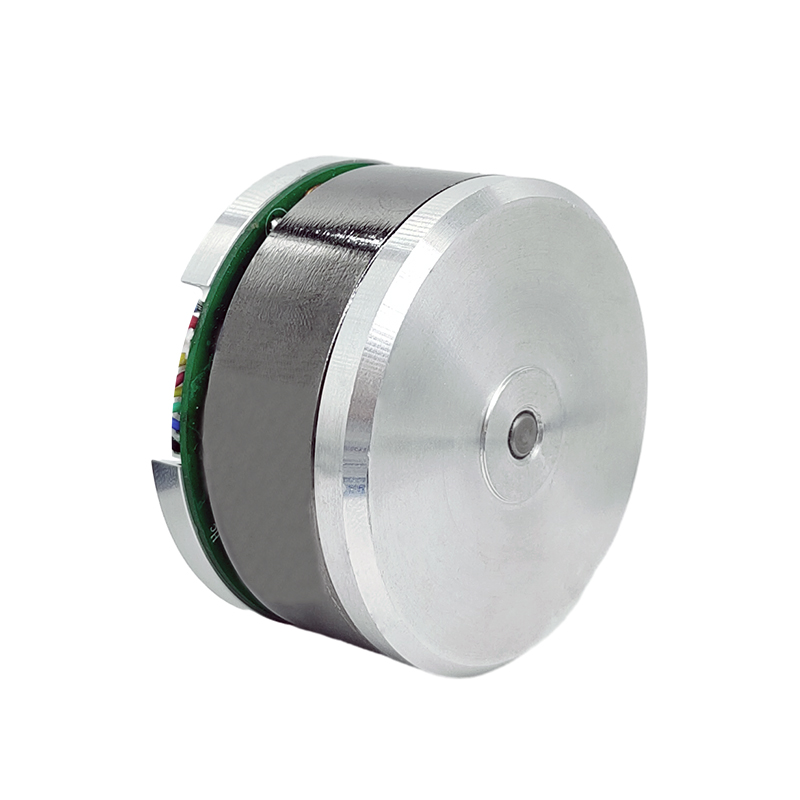

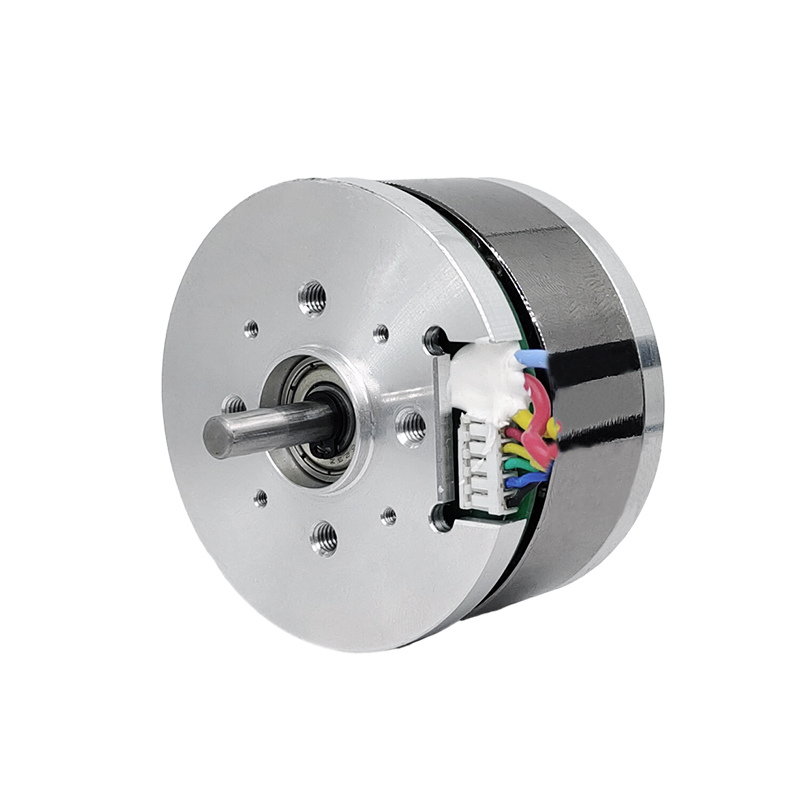

Chaoya presents an external rotor brushless motor with a diameter of 55mm, 24V rated voltage, and a finishing case with excellent performance, which can be utilized in brushless electric fans, crossflow fans, oxygen concentrators and other smart home products. This outer rotor brushless motor is more efficient and has more torque compared to the inner rotor brushless motor of the same size. Chaoya can also provide other sizes of inner rotor brushless motors and outer rotor brushless motors, according to the customer's demand parameters to provide the corresponding brushless motors.
Chaoya company has launched an external rotor brushless motor, the diameter of this brushless external rotor motor is 55mm, the width is 32mm, 24V DC power supply, the appearance of the casing is exquisite, with excellent performance, it can be used in brushless fans, cross-flow fans, oxygen generators and other smart home products, and similar parameter requirements of the products can be applied to the external rotor brushless motor.
Chaoya's brushless outer rotor motor has a torque of about 120mNm and a speed of about 4000, with high efficiency. The reason for adopting the outer rotor brushless motor is that it is usually necessary to consider the customer's needs for motor parameters and dimensions, as well as the motor's running time and operating mode.
Chaoya can also provide other sizes of external rotor brushless motors and internal rotor brushless motors, and can also increase the torque of the motor and reduce the speed of the motor by adding a reduction gearbox. Chaoya has rich experience in the industry and accumulated relevant technology, and is able to design and fabricate according to the customer's product requirements. Customers' inquiries are welcome.
| Model | Voltage(V) | No Load Rotating Speed(rpm) | No-load current(A) | Load torque(Kgf.cm) | Load Rotating Speed(rpm) | Load Current(A) |
| BL5532 | 24 | 4850 | 0.45 | 1.2 | 4000 | 3.0 |
