Chaoya presents a 25mm 370 geared motor, which is a compact and beautiful motor with low speed and low noise. This gearmotor has a wide range of applications and can be used in products such as robots, coffee machines, power tools, household equipment and office equipment. The 25mm 370 gearmotor has a high torque output at low speeds to meet the relevant load torque, and a wide range of reduction ratios to match the performance parameters to the customer's product requirements. At the same time, this motor has high efficiency and long service life, excellent product performance for the majority of customers to choose.

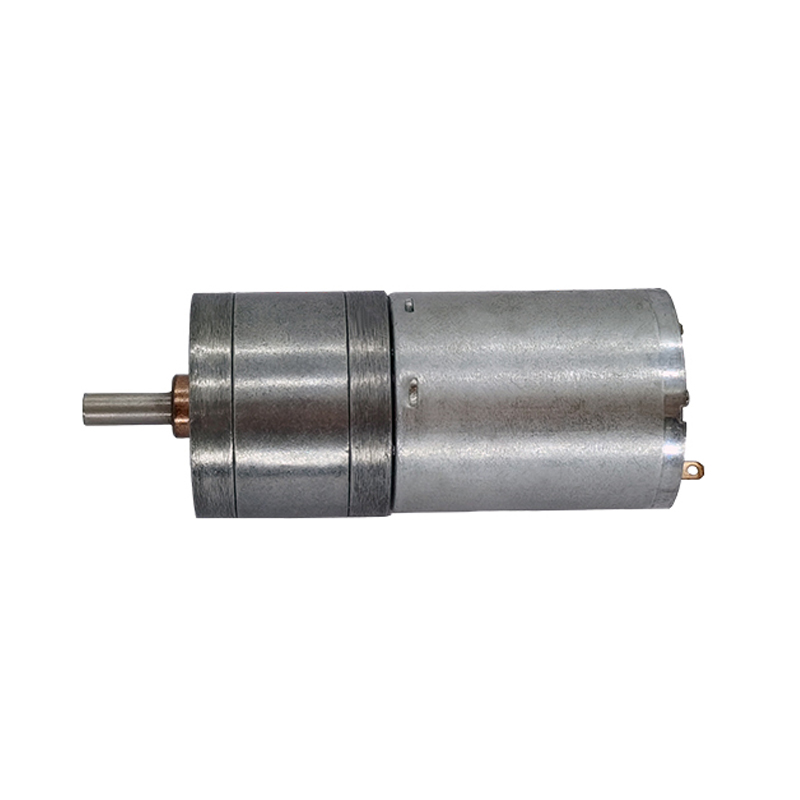

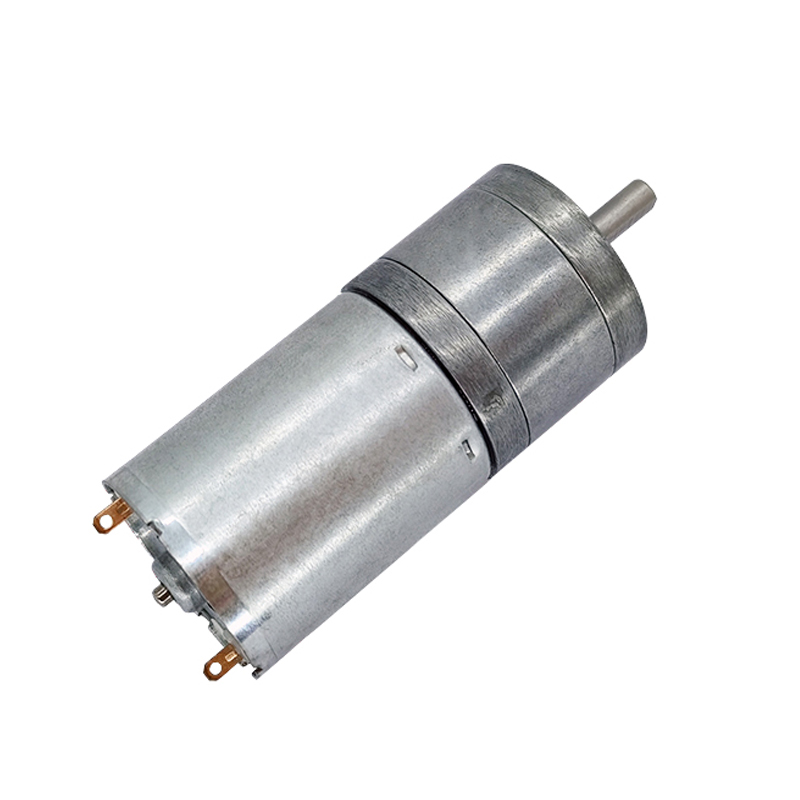

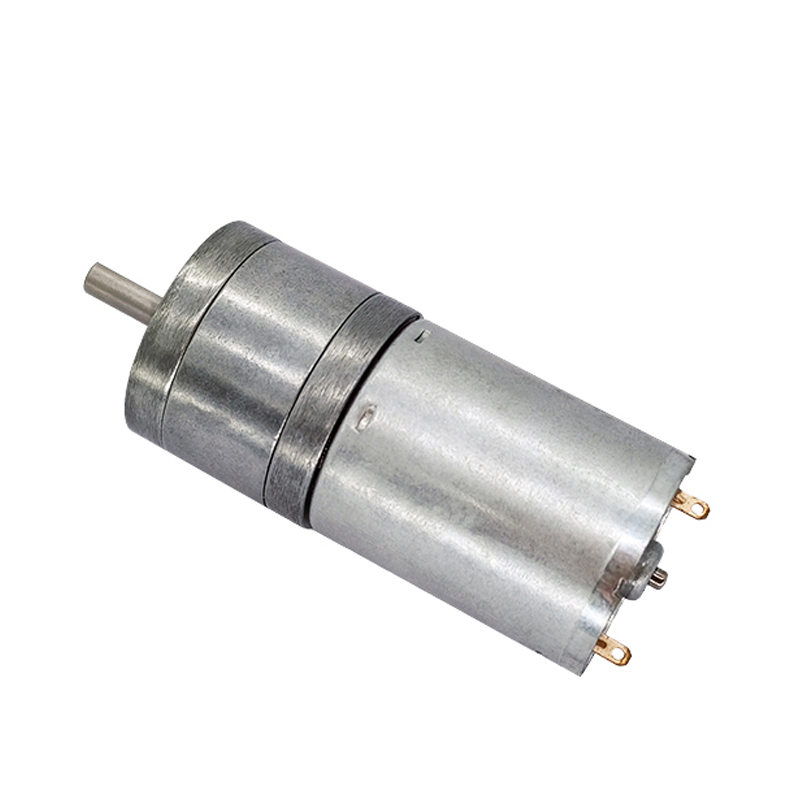

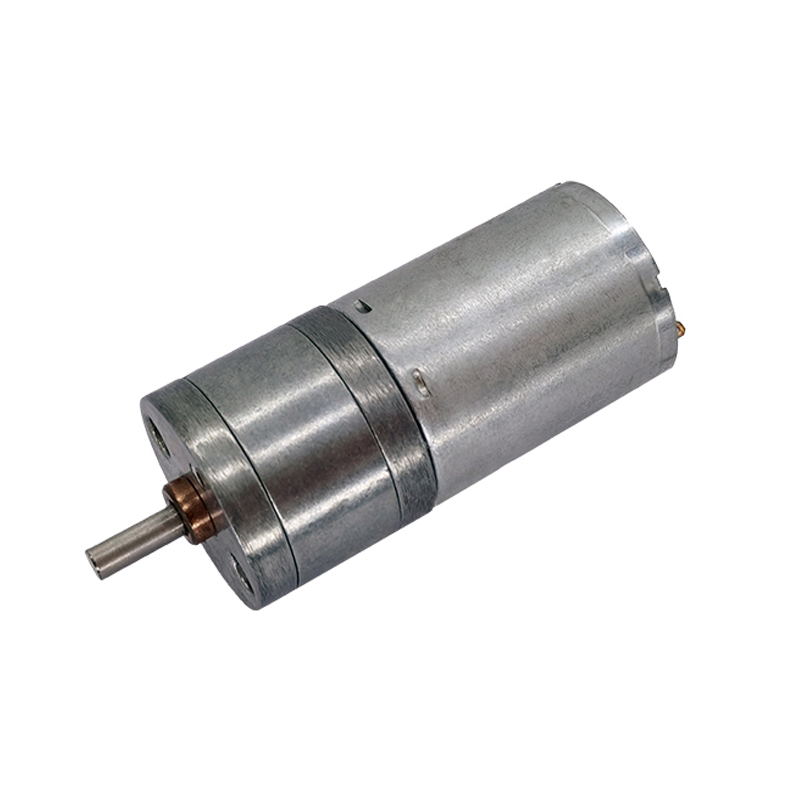

Chaoya has a diameter of about 25mm, with 370 gear motor products.
This 370 gearmotor is compact and has a fine appearance, does not take up too much space in the adapted product, and can be matched with other products efficiently. The motor has a low rotational speed and low noise, and is configured to deliver a large torque output through spur gear reduction.
Chaoya's 25mm geared motor can be adapted to a wide range of products, and the degree of adaptability to the relevant product is very much related to the performance parameters required by the product. This geared motor can be used in products such as machine coffee makers, power tools, home appliances and office equipment. This gearmotor can be used in products such as coffee machines, power tools, home appliances and office equipment.
Chaoya's 370 geared motors have a variety of gear ratio options to choose from, a wider range of speed ratios, can provide customers with a wider range of motor options naturally, at the same time, the motor has a high efficiency and long life, the majority of customers can also be with the needs of the selection of the appropriate motor products.
| Motor Parameters: | |||||||||||
| Model | Voltage(V) | No Load Rotating Speed(rpm) | No-load current(mA) | Load torque(gf.cm) | Load Rotating Speed(rpm) | Load Current(A) | |||||
| RC370 | 12 | 5300 | 60 | 37 | 4700 | 0.3 | |||||
| Motor +GearBox Parameters: | |||||||||||
| Gear Motor Model | Reducer Ratio | 15 | 20 | 34 | 44 | 59 | 103 | 130 | 226 | 498 | / |
| 25GA-RC370 | No Load Rotating Speed(rpm) | 353 | 265 | 156 | 120 | 90 | 51 | 41 | 23 | 11 | / |
| Rated Torque(kgf.cm) | 0.38 | 0.5 | 0.75 | 0.98 | 1.16 | 2.02 | 2.21 | 3.85 | 8 | / | |
| Rated Rotating Speed(rpm) | 313 | 235 | 138 | 107 | 80 | 46 | 36 | 21 | 9 | / |
