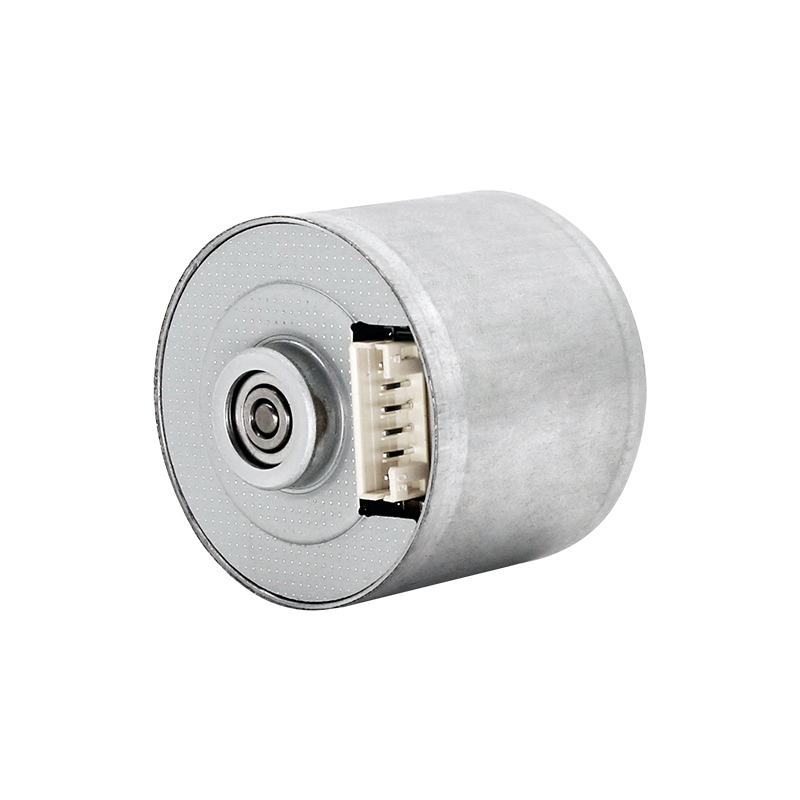

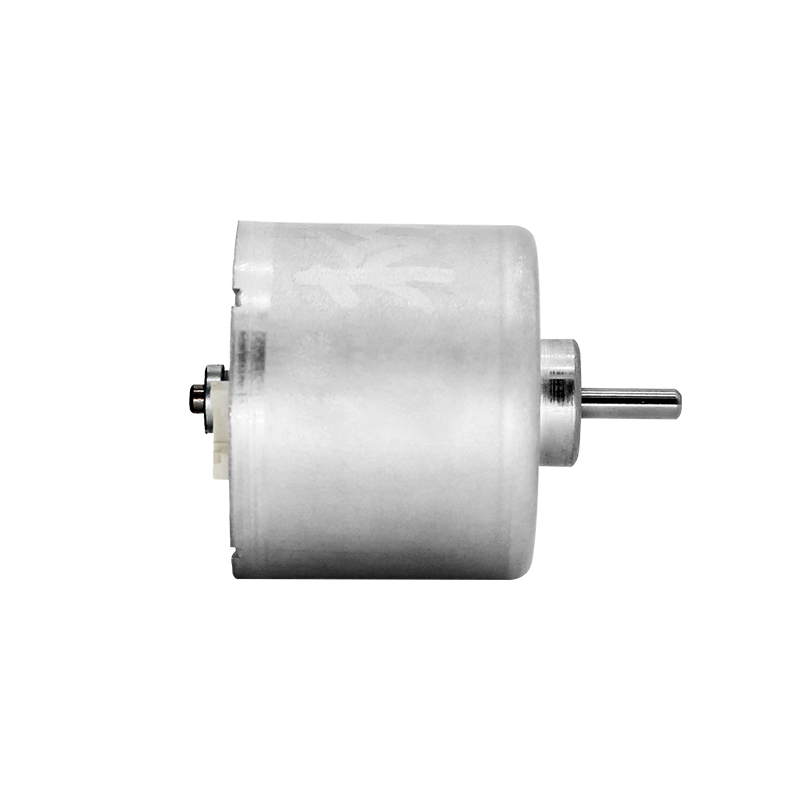

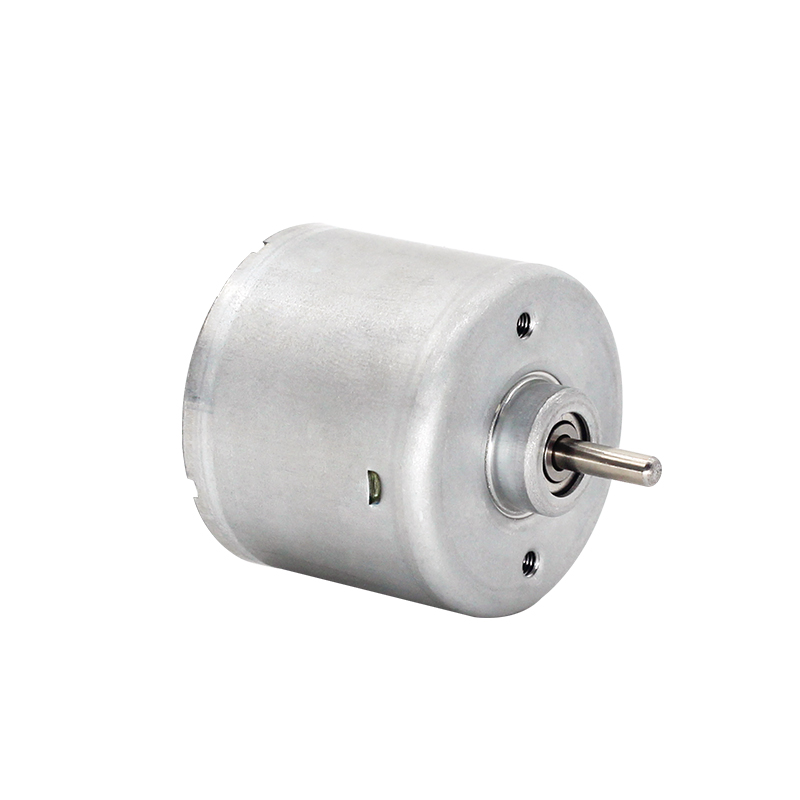

Chaoya is one of 36mm Brushless Electric valve Actuator DC Motor manufacturer and supplier in China,which specialized in manufacturing of 36mm Brushless Electric valve Actuator DC Motor designed for electric valve actuators.The 36mm Brushless Electric valve Actuator DC Motor uses high-quality materials and built-in controllers,and has undergone rigorous testing and quality control,which ensures high durability and precision.In addition,36mm Brushless Electric valve Actuator DC Motor has high speed and torque, which can easily meet the torque required by valve actuators.
The 36mm Brushless Electric Valve Actuator DC Motor is a product that offers convenience and ease in the automation of valve operations. It is produced by China Chaoya Factory, a company that specializes in the production of high-quality electric DC motors， The 36mm Brushless Electric Valve Actuator DC Motor is a brushless DC motor designed for use in various types of valves, such as ball valves, butterfly valves, and plug valves. With its compact size and lightweight design, 36mm Brushless Electric Valve Actuator DC Motor is suitable for use in small spaces and can be installed easily.
The 36mm Brushless Electric Valve Actuator DC Motor has several features that make it an ideal product for use in industrial applications. It is equipped with a high-performance brushless motor that ensures smooth and reliable operation. It is also equipped with a DC motor that provides high torque and durability. The 36mm Brushless Electric Valve Actuator DC Motor is available for wholesale purchase or customization at any time. Companies that require this product in large quantities can buy directly from the China Chaoya Factory at wholesale prices. This is an excellent option for companies that need to streamline their supply chains and reduce costs.
In conclusion, the 36mm Brushless Electric Valve Actuator DC Motor is a versatile and reliable product for valve automation. Its brushless feature, compact size, and lightweight design make it an ideal product for use in small spaces. The motor is available for wholesale purchase or customization, making it a suitable product for companies that need a streamlined supply chain. With its low power consumption, high torque, and durability, this motor is well-suited for use in various industrial applications. Contact China Chaoya Factory for more information on this product.
| Model | Operating Voltage(V) | No Load | Maximum efficiency | Maximum Power | Stall | Rotating Direction | |||||||||
| Current (A) | Rotating Speed(RPM) | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Efficiency | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Torque(mN.M) | current(A) | |||
| BL3630DI | 24 | 0.1 | 7000 | 16.08 | 0.51 | 5852 | 9.85 | 81% | 49.05 | 1.35 | 3500 | 17.98 | 98.1 | 2.6 | CW/CCW |
| BL3630SI | 12 | 0.15 | 5800 | 11.86 | 0.625 | 4677 | 5.81 | 77% | 30.64 | 1.377 | 2900 | 9.3 | 61.27 | 2.604 | CW/CCW |
