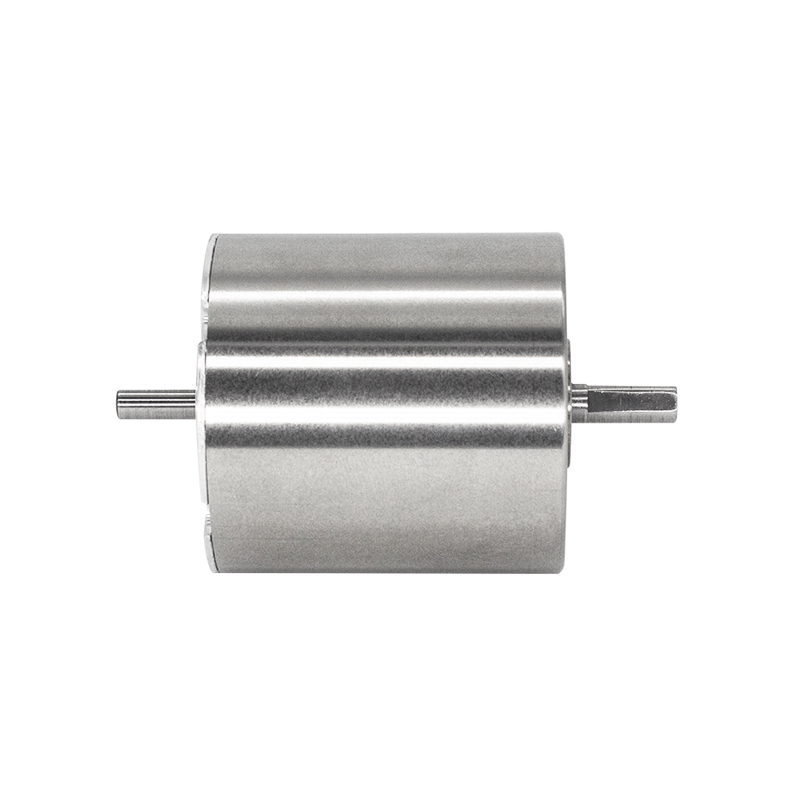

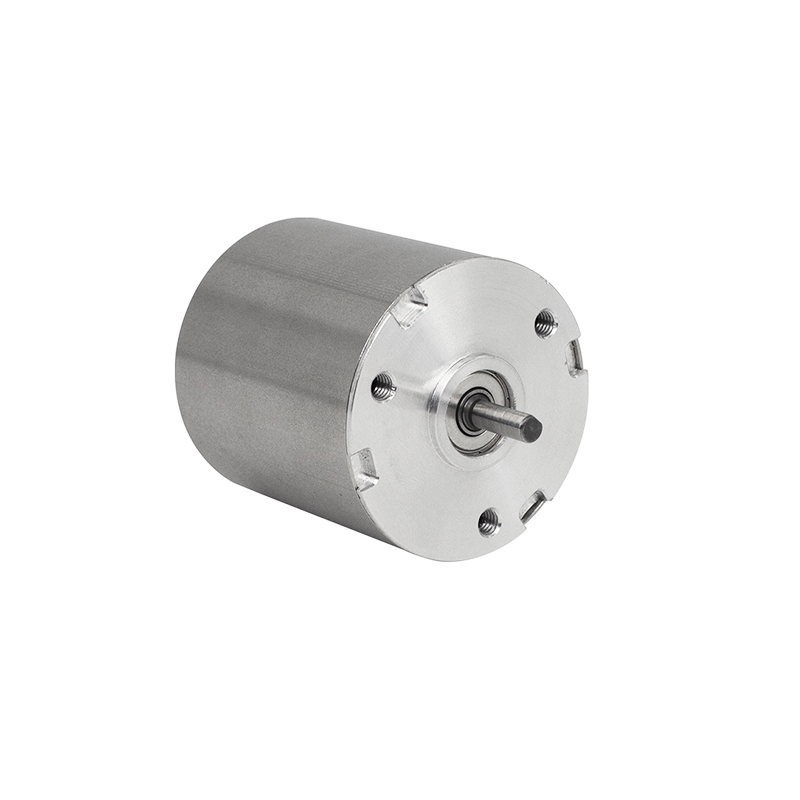

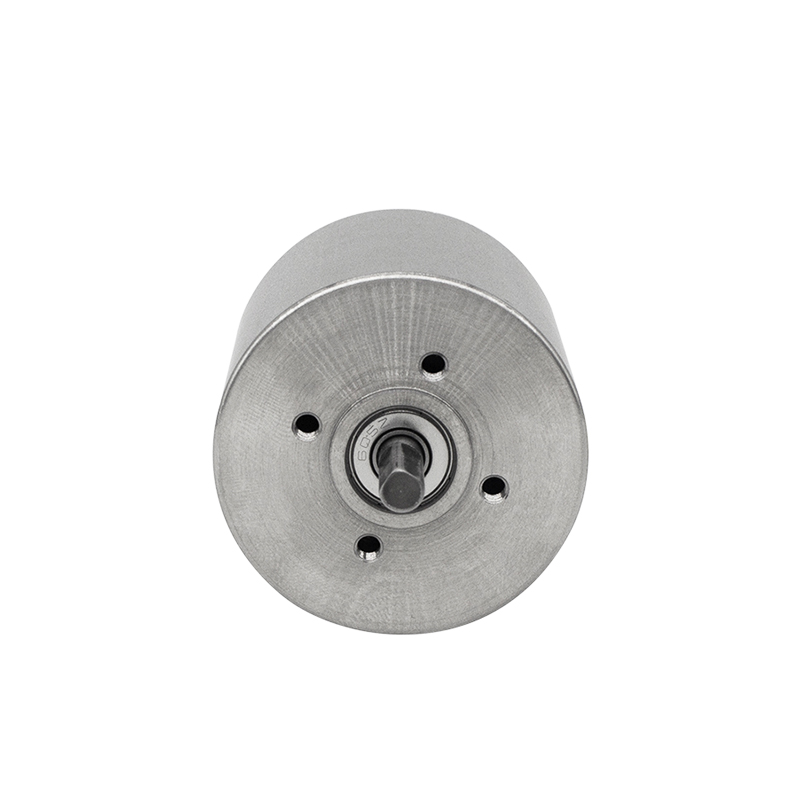

42mm Brushless DC Motor For Automation is a high-efficiency,low-noise product produced by Chaoya Factory in China.The motor has a diameter of 42mm and a length of 43mm.It has a double-output shaft design and is widely used in various industrial and automation equipment.42mm Brushless DC Motor For Automation adopts advanced brushless technology and has excellent performance and stability.Its characteristics of high efficiency,low noise and low energy consumption make it an ideal choice for the robotics industry.
The 42mm Brushless DC Motor For Automation is a high-efficiency, low-noise, and highly reliable brushless motor product produced by China Chaoya Factory. Its versatility and wide range of applications make it ideal for a wide range of industrial and automation equipment. Whether in the fields of automation equipment, home appliances, automotive industry, aerospace or medical equipment, 42mm Brushless DC Motor For Automation can provide excellent performance and reliable power support to meet the needs of different users.
42mm Brushless DC Motor For Automation uses high-efficiency magnets and advanced control algorithms to achieve high-speed rotation and quick response. Its high-efficiency design can significantly reduce energy consumption and improve equipment operating efficiency.
42mm Brushless DC Motor For Automation uses brushless technology, which eliminates the brushes and rotary switches of traditional brush motors, thereby reducing noise and vibration generated during motor operation.
42mm Brushless DC Motor For Automation adopts high-quality materials and strict production process, providing excellent durability and stability. Its precision structural design and high-quality components ensure that the motor maintains good performance and reliability over long periods of operation.
42mm Brushless DC Motor For Automation can be customized for different application needs, offering a variety of options and configurations, such as different voltages, powers, and speeds. This motor is suitable for various fields, such as automation equipment, industrial machinery, aerospace, medical equipment, household appliances, etc.
Model | Operating Voltage(V) | No Load | Maximum efficiency | Maximum Power | Stall | Rotating Direction | |||||||||
Current (A) | Rotating Speed(RPM) | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Efficiency | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Torque(mN.M) | current(A) | |||
BL4243 | 24 | 0.22 | 8500 | 32.65 | 1.268 | 7244 | 24.77 | 81% | 110.44 | 3.766 | 4250 | 49.15 | 220.89 | 7.313 | CW/CCW |
