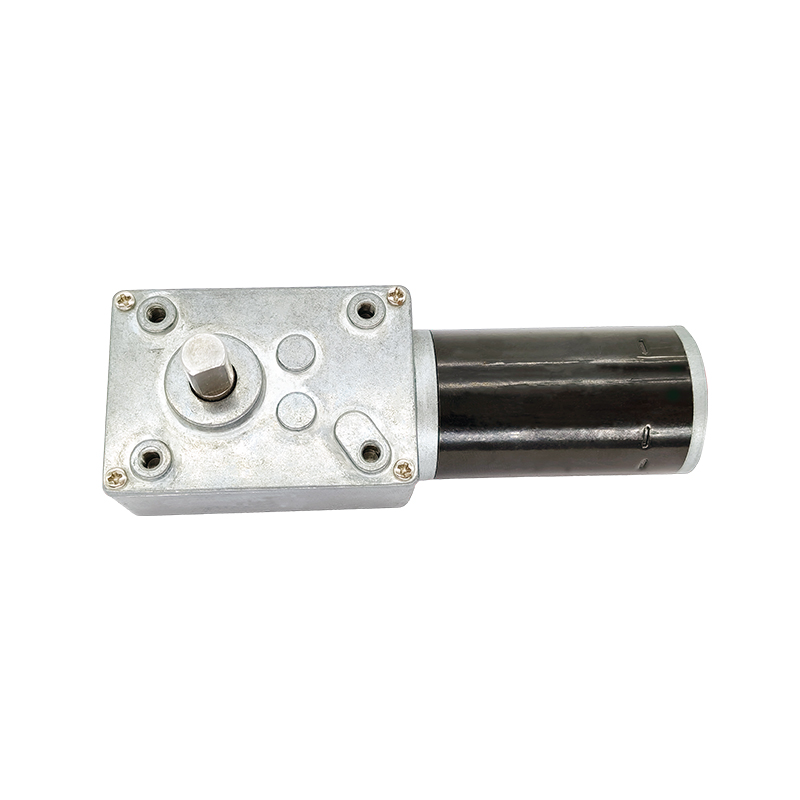

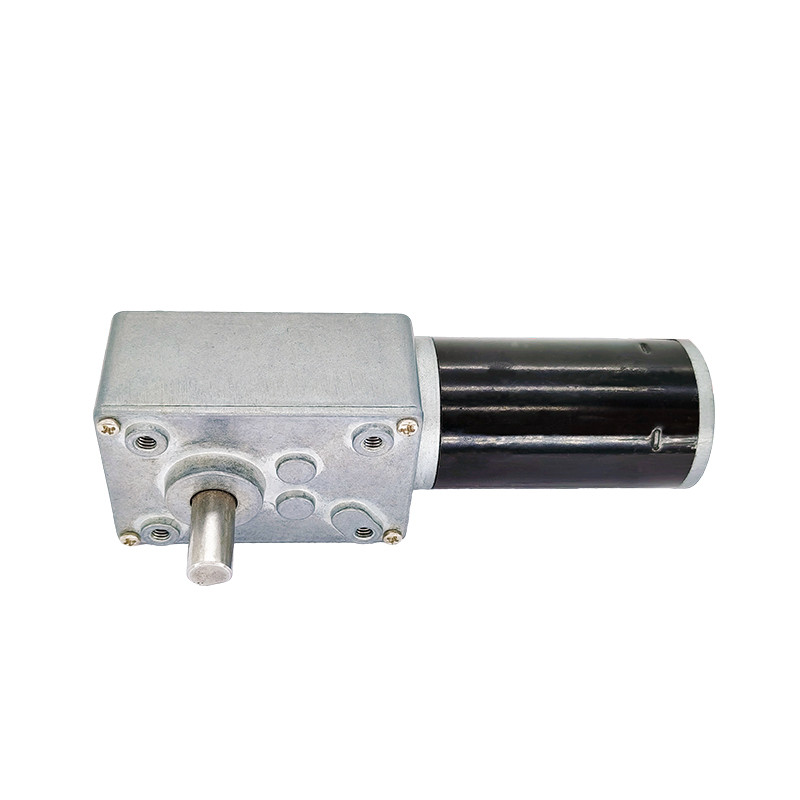

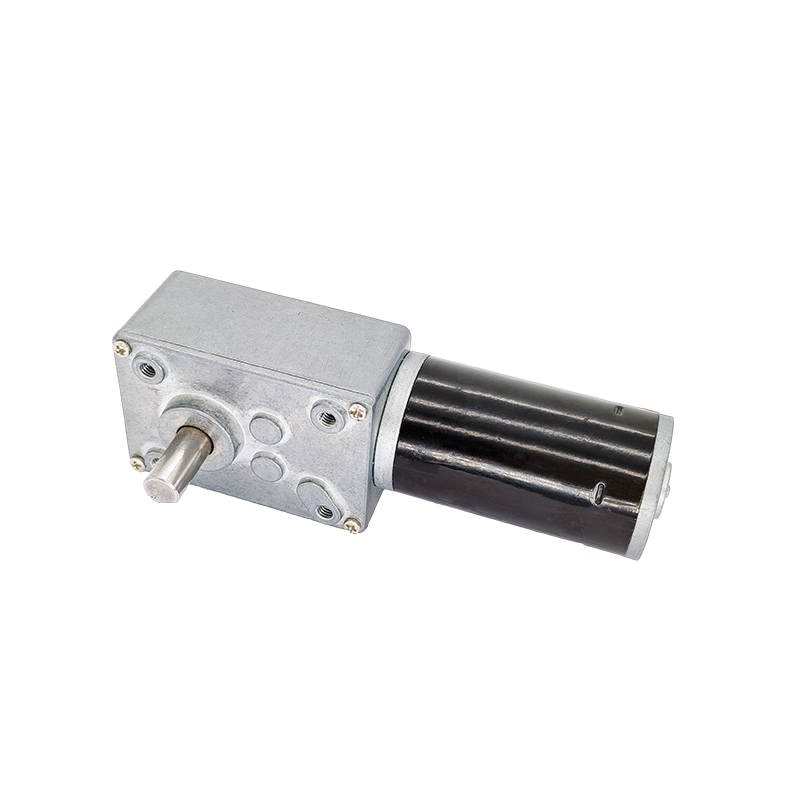

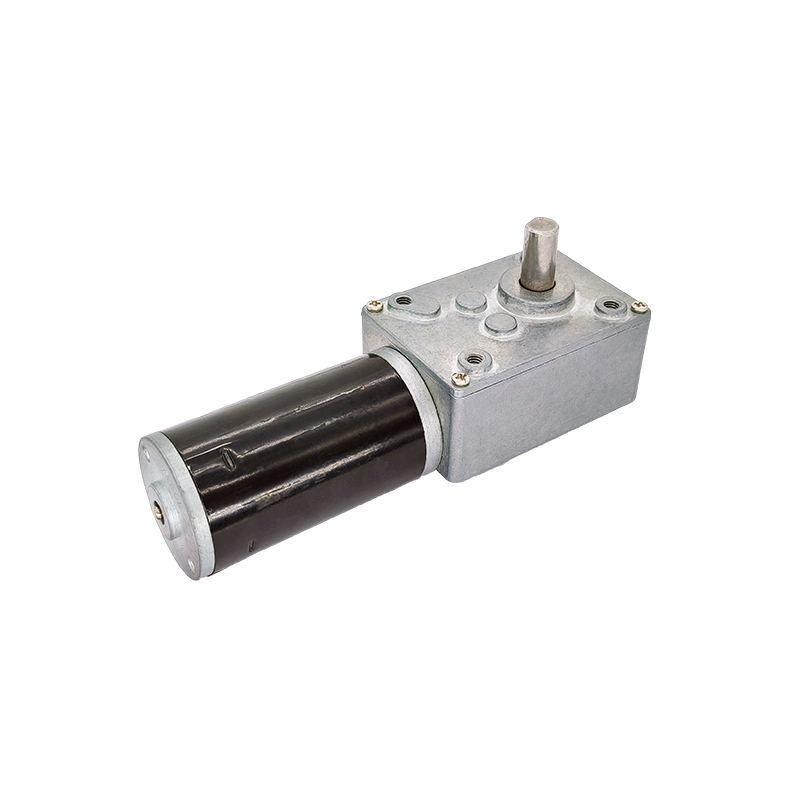

This 5840 turbine worm gear motor has a gearbox length of 58mm and a width of 40mm and uses a 24V DC motor. It is introduced by Chaoya for products with high torque and low RPM requirements. The gearbox has a right-angle structure, which is convenient for products that require this type of output. This gear motor uses a worm gear design, which carries more torque than a planetary gearbox. Worm gear motors are suitable for a wide range of products, such as hoods, automatic mahjong machines and household appliances, and are also available in other gear ratios, which can be customized according to requirements.
This 5840 worm gear motor from Chaoya adopts a 24V DC motor and a worm gearbox with a length of 58mm, a width of 40mm, and a right-angle structure between the output shaft and the gearbox, so as to meet the torque output of products with such requirements.
This worm gear motor is characterized by low rotational speed and high torque, and can be used to support products with high loads.
This geared motor uses a worm gear and gears for transmission to provide a high torque output, and the output shaft can be made into a D-shape shaft for easy installation. Compact in size, it can keep low noise when running. Chaoya's turbine-worm geared motor can be matched with the corresponding gear ratio, matching the parameters of the product according to the customer's needs, and it can be used in a wide range of household appliances and industrial products.
The torque of worm gear motor is bigger than planetary gear motor, and the motor is more stable in operation. Chaoya can provide many kinds of gear motor products, mainly according to the customer's needs to choose the motor model and match the parameters, and the customer can consult us if he/she has the related motor needs.
| Model | Operating Voltage(V) | No Load | Maximum efficiency | Stall | |||||
| Current (A) | Rotating Speed(RPM) | Torque(mN.M) | current(A) | Rated Speed(RPM) | rated torque(kgf.cm) | Torque(kgf.cm) | current(A) | ||
| 5840-31ZY | 24 | ≤0.1 | 100 | 32.85 | ≤0.6 | 80 | 14 | 42 | ≤2.0 |
