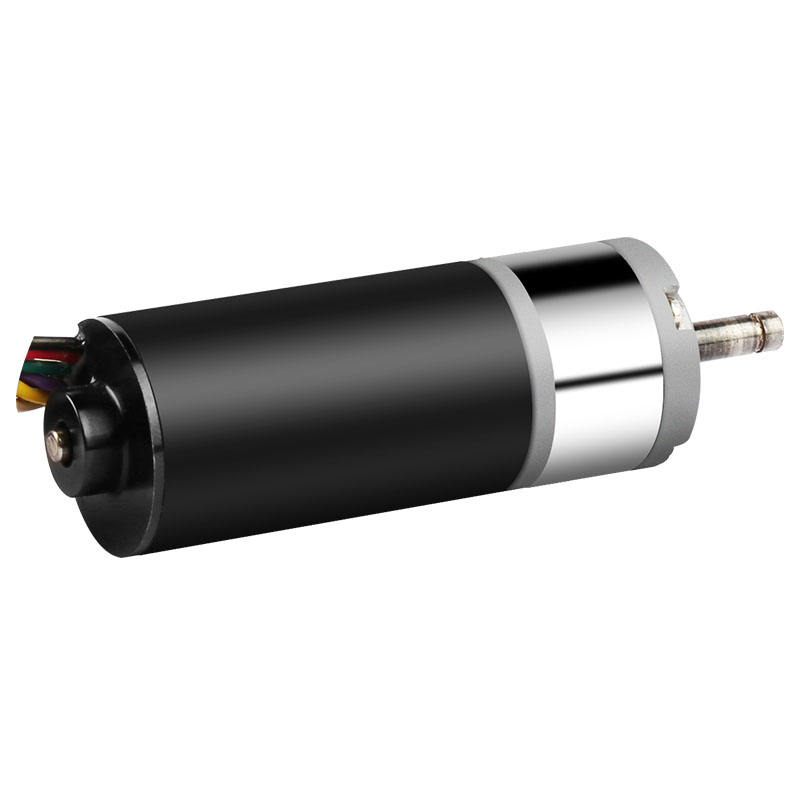

Our factory Chaoya specializes in manufacturing of various of Brushless Gear Motor, especially 22mm Built In Hall Brushless Gear Motor For Household ,which is a high-performance motor designed for use in various household applications, such as robotic cleaners, electric curtains, and other home automation appliances.
As one of the professional supplier in china, Chaoya would like to provide you 22mm Built In Hall Brushless Gear Motor For Household. And Chaoya will offer you the best after-sale service and timely delivery. 22mm Built In Hall Brushless Gear Motor For Household is highly efficient and reliable, thanks to its built-in hall sensors and brushless design, which offers superior durability and longevity compared to traditional brushed motors. The hall sensors provide precise feedback on rotor position, which helps maintain accurate and reliable performance.In addition, 22mm Built In Hall Brushless Gear Motor For Household combined features with the gear system provide a robust combination that allows the motor to increase torque and decrease speed, which is vital in many household applications.Gears add complexity to the motor system but offer several benefits. They provide stable and consistent speed and torque, contributing to improved reliability and longevity. They also help reduce the motor's power consumption, leading to energy savings and a longer lifespan.Overall, the 22mm Built-in Hall Brushless Gear Motor for Household is a high-performance solution for various household applications, offering durability, reliability, efficiency, and control. The gear system helps reduce motor size and power requirements while increasing its performance and efficiency, making it a popular option in many household applications.
| Step | 1st step | 2nd step | 3rd step | fourth step | fifth step |
| Length(mm) | 15.6 | 19.1 | 22.6 | 26.1 | 29.6 |
| Efficience | 90% | 81% | 73% | 66% | 59% |
| Reducer Ratio | 3.5, 4.75 | 12, 14, 16, 19, 22.5, 36 | 49, 64, 76, 90, 100, 114, 126, 135, 171, 216 | 172, 256, 304, 361, 509, 1026 | 2418 |
| Rated Turque | 0.5~2 Kgf.cm | 0.5~3 Kgf.cm | 3~6 Kgf.cm | 6~10 Kgf.cm | 6~10 Kgf.cm |
| Momentary Allowable Turque | 3Kgf.cm | 5Kgf.cm | 8Kgf.cm | 12Kgf.cm | 12Kgf.cm |
Remark:
1.Can be equipped with 1#,2#series brushed motor/22#,24#series brushless motor
2.Operation temperature:-40℃~+80℃
3.Output shaft can be customized upon request
| Model | Voltage(V) | No Load Rotating Speed(rpm) | No-load current(mA) | Load torque(gf.cm) | Load Rotating Speed(rpm) | Load Current(A) |
| BL2238 | 12 | 4500 | 60 | 46 | 3650 | 0.26 |
| Gear Motor Model | Reducer Ratio | 4.75 | 36 | 100 | 216 | 361 |
| 22PG-BL2238 | No Load Rotating Speed(rpm) | 947 | 125 | 45 | 21 | 12 |
| Rated Torque(kgf.cm) | 0.2 | 1.24 | 3.13 | 6.76 | 9.6 | |
| Rated Rotating Speed(rpm) | 768 | 101 | 37 | 17 | 10 |
