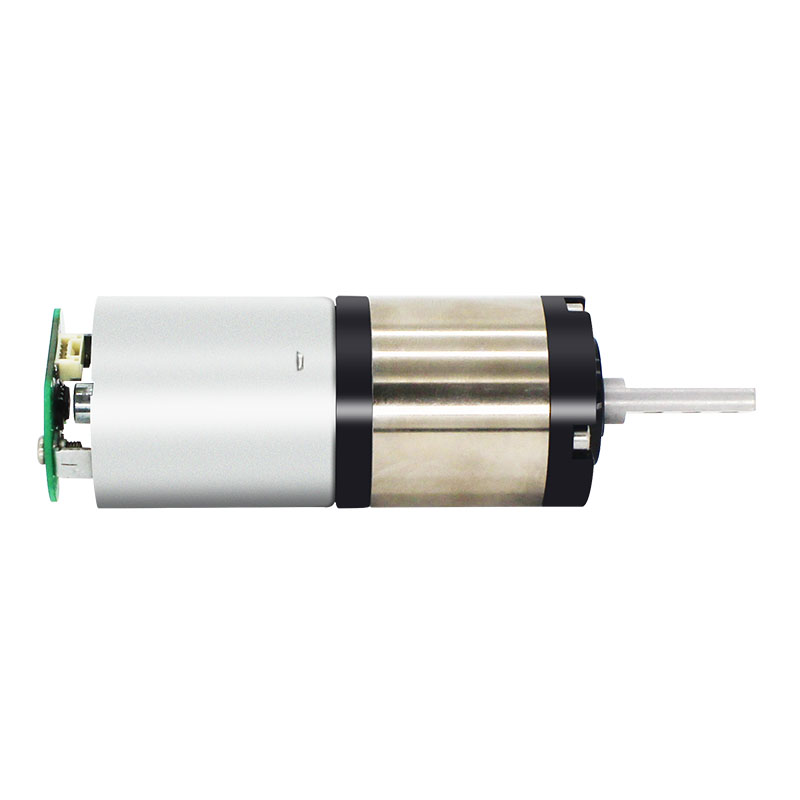

Chaoya,a leading manufacturer and supplier of high-performance DC motor&Gear motors in China,Welcome to wholesale or customized 36mm DC Brushless Gear Motor For Coffee Makers from our chaoya factory in china at any time,We will provide you with factory discount prices for our products.chaoya is 36mm DC Brushless Gear Motor For Coffee Makers manufacturers and suppliers in China,this motor system consists of 36mm brushless DC motor and a 36mm gearbox.It is specially designed to meet the demanding needs of the coffee industry, delivering excellent performance and reliability.
As a famous motor manufacturer in China, Chaoya is committed to providing high-performance and high-reliability 36mm DC Brushless Gear Motor For Coffee Makers .The motor system comprises a brushless DC motor with a diameter of 36mm and a 36mm gearbox. The brushless motor provides high efficiency, low noise, and long operating life, while the gearbox offers precise speed control, high torque, and quiet operation.At the same time, the gear reducer adopts a structural design in which the gear and the mesh with each other, which has high transmission efficiency and stability, can reduce energy loss, and improve the working efficiency of the entire motor system.
36mm DC Brushless Gear Motor For Coffee Makers adopts a closed-loop control system and is equipped with an encoder for position feedback, enabling precise position control and positioning functions.
36mm DC Brushless Gear Motor For Coffee Makers adopts precision manufacturing technology and high-quality materials, which can effectively reduce noise and vibration and provide a quiet and comfortable working environment.
The motor system is fully customizable and can be tailored to meet the specific needs of customers. It can be used in a wide range of coffee makers, including espresso machines, drip coffee makers, and single-serve machines.To learn more about Chaoya's 36mm DC Brushless Gear Motor for Coffee Makers and our other motor solutions, please visit our website or contact us directly.
| Step | 1st step | 2nd step | 3rd step | fourth step | fifth step |
| Length(mm) | 24.9 | 30.9 | 37.1 | / | / |
| Efficience | 90% | 81% | 73% | / | / |
| Reducer Ratio | 3.75, 5.18 | 14, 19, 27 | 53, 73, 100, 139 | / | / |
| Rated Turque | 0.5~3.5 Kgf.cm | 3~12 Kgf.cm | 12~50 Kgf.cm | / | / |
| Momentary Allowable Turque | 7Kgf.cm | 20Kgf.cm | 80Kgf.cm | / | / |
Remark:
1.Can be equipped with 5#series brushed motor/36#series brushless motor
2.Operation temperature:-40℃~+80℃
3.Output shaft can be customized upon request
| Model | Voltage(V) | No Load Rotating Speed(rpm) | No-load current(mA) | Load torque(gf.cm) | Load Rotating Speed(rpm) | Load Current(A) |
| BL3640 | 12 | 6200 | 0.25 | 200 | 5100 | 1.5 |
| Gear Motor Model | Reducer Ratio | 5.18 | 27 | 53 | 139 | / |
| 36PG-BL3640 | No Load Rotating Speed(rpm) | 1197 | 230 | 117 | 45 | / |
| Rated Torque(kgf.cm) | 0.93 | 4.05 | 7.21 | 18.9 | / | |
| Rated Rotating Speed(rpm) | 985 | 189 | 96 | 37 | / |
