The 32mm brush geared motor made by Chaoya is specially used for sweeping robot products, the motor has the characteristics of low speed and high torque, which is suitable for home appliances with related needs, this motor can be made in 12V or 24V version, depending on the customer's needs, and the related parameters can be adjusted to meet the customer's use, the Chaoya company was founded more than 10 years ago, and has been in the miniature Chaoya has been established for more than 10 years, and has accumulated a lot of experience in the field of miniature DC motors, welcome customers to inquire.
This 32mm brush geared motor is specially designed and manufactured by Chaoya for sweeping robots, with rated voltage of 12V or 24V, depending on the customer's product requirements. 32mm brush geared motor has stable performance and high torque, which can be used in products other than sweeping robots that have the same performance requirements, and has a longer service life to meet the needs of daily work.

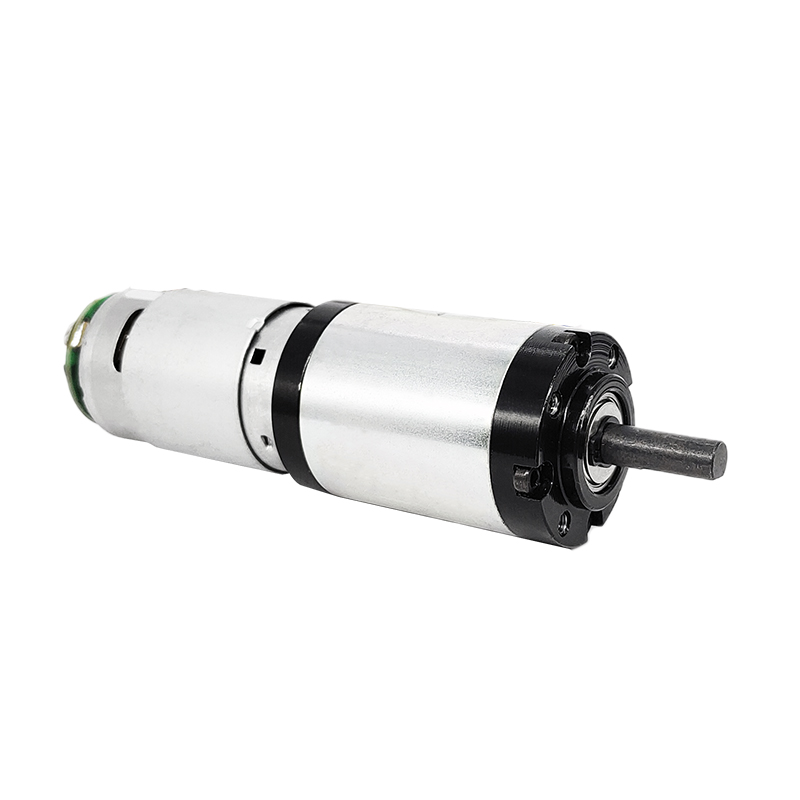

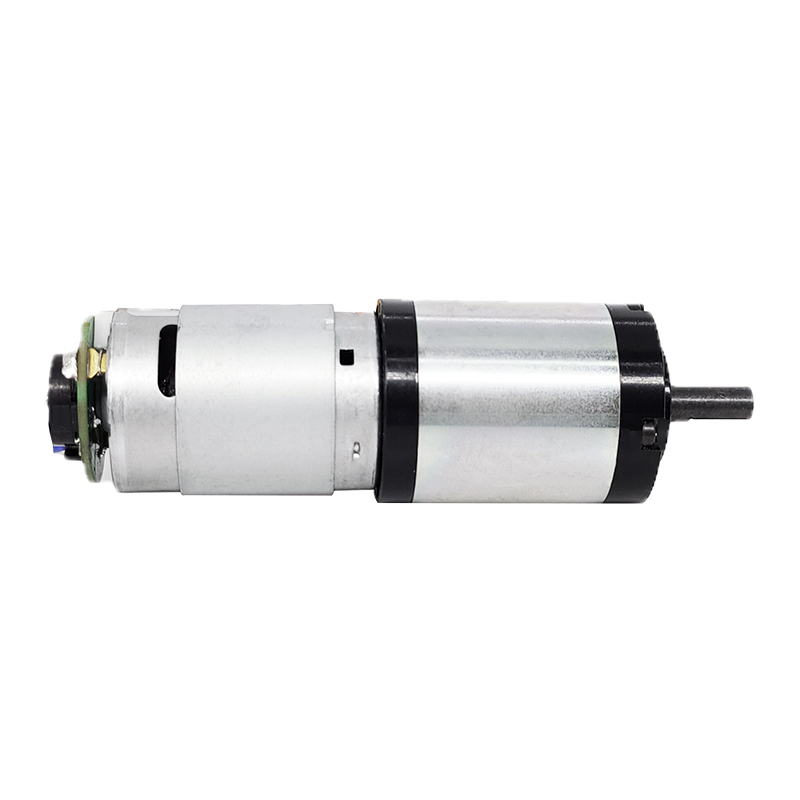

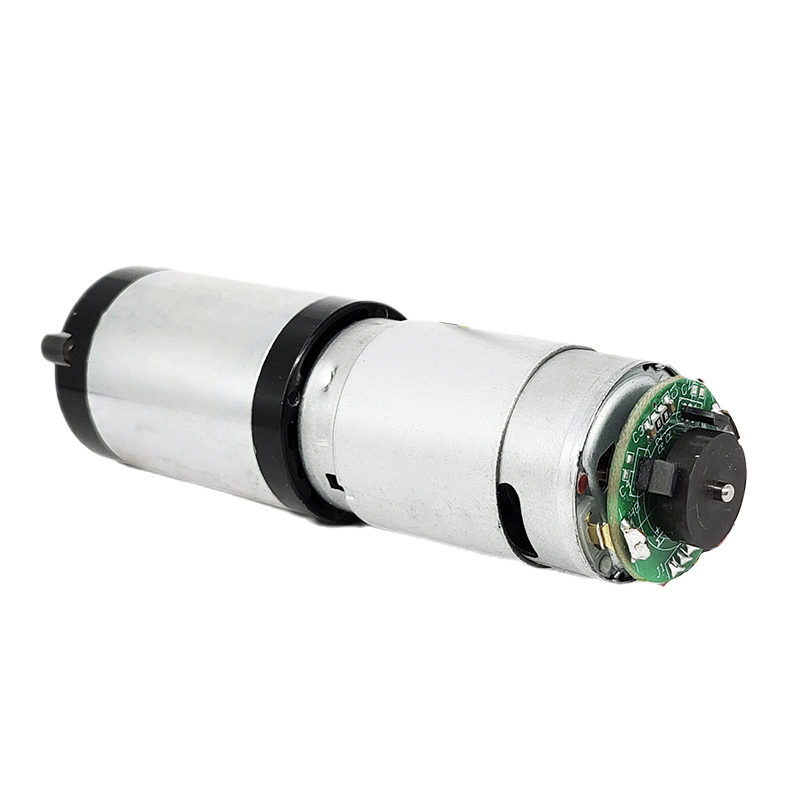

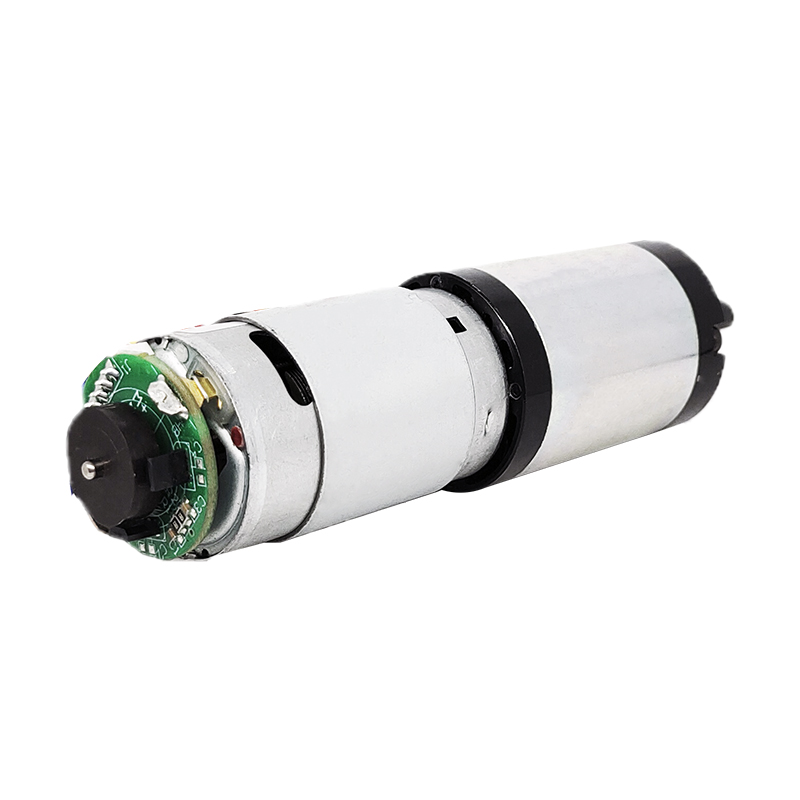

This gear motor adopts 395 brushed motor with planetary gearbox, and the tail can be added with hall for feedback output signal. The diameter of this gearmotor is within 32mm, suitable for products with relevant size limitations, while the product is economical and convenient, which can save product costs.
In addition to this gear motor, Chaoya also has other gear motor products, from 20mm-42mm gear motors, we have a variety of products, useful for home appliances, industrial equipment, industrial instruments and other fields, the use of a wide range of scenes to meet a variety of scenarios under the conditions of use, Chaoya can be adjusted according to the needs of the customer, the use of the parameters of the motor to match the customer's requirements, but also can be The motor can be equipped with Hall encoder at the end of the motor to output speed signal. Chaoya has accumulated a wealth of technology and R & D experience in the motor industry, to develop relative solutions for customer needs, customers have related needs, you can ask us for advice, we also welcome customers to understand and consult our products.
| GearBox Parameters: | |||||||||||||||
| Step | 1st step | 2nd step | 3rd step | fourth step | fifth step | ||||||||||
| Length(mm) | 31.5 | 37.7 | 43.9 | / | / | ||||||||||
| Efficience | 90% | 81% | 73% | / | / | ||||||||||
| Reducer Ratio | 3.7, 5.18 | 14, 19, 27 | 53,73,100,139 | / | / | ||||||||||
| Rated Torque | 0.5-3.5kgf.cm | 3-10kgf.cm | 10-35kgf.cm | / | / | ||||||||||
| Instant Rated Torque | 7kgf.cm | 20kgf.cm | 50kgf.cm | / | / | ||||||||||
|
Remark:1.Can be equipped with3#series brushed motor 2.Operation temperature:-40℃~+80℃ 3.Output shaft can be customized upon request |
|||||||||||||||
| Motor Parameters: | |||||||||||||||
| Model | Operating Voltage(V) | No Load | Maximum efficiency | Maximum Power | Stall | Rotating Direction | |||||||||
| Current (A) | Rotating Speed(RPM) | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Efficiency | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Torque(mN.M) | current(A) | |||
| RC395 | 12 | 0.1 | 5700 | 8.17 | 0.516 | 4775 | 4.08 | 66% | 25.16 | 1.383 | 2850 | 7.51 | 50.32 | 2.665 | CW/CCW |
| RC395 | 24 | 0.06 | 6600 | 8.51 | 0.355 | 5646 | 5.03 | 59% | 29.43 | 1.08 | 3300 | 10.17 | 58.86 | 2.1 | CW/CCW |
