Chaoya is a supplier and manufacturer of 36mm planetary gear motor. We have been manufacturing and supplying DC motors for more than 10 years. Our cost-effective and high performance products are used in a wide range of products with our motors. We would like to be your long term partner in China.

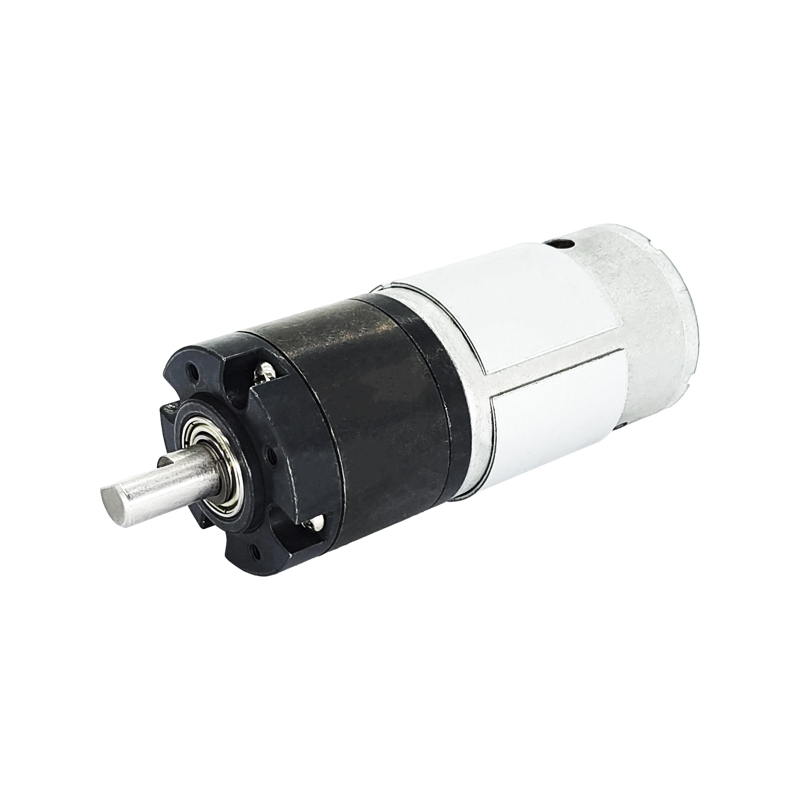

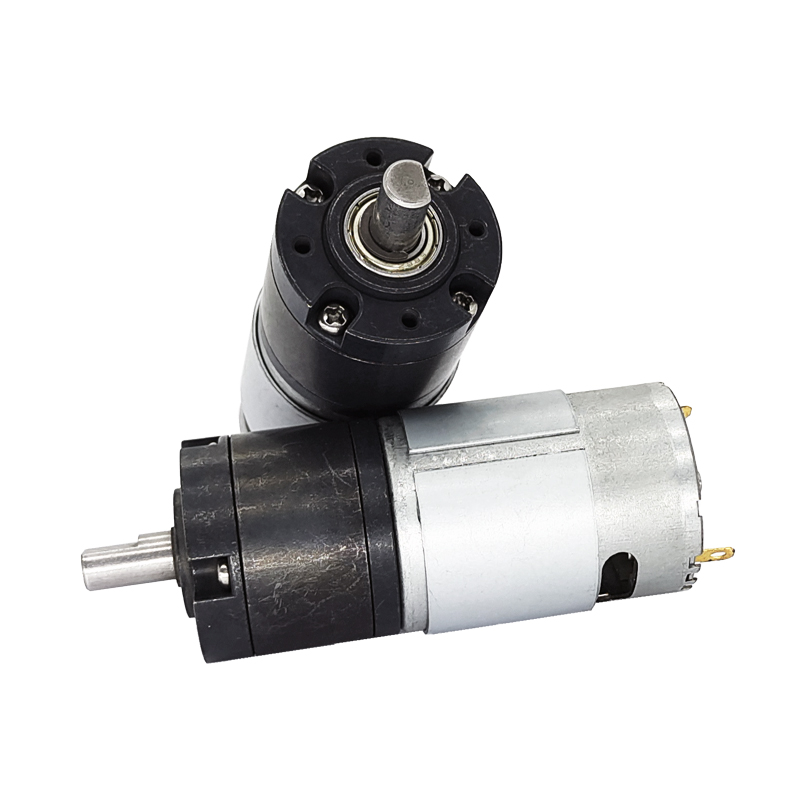

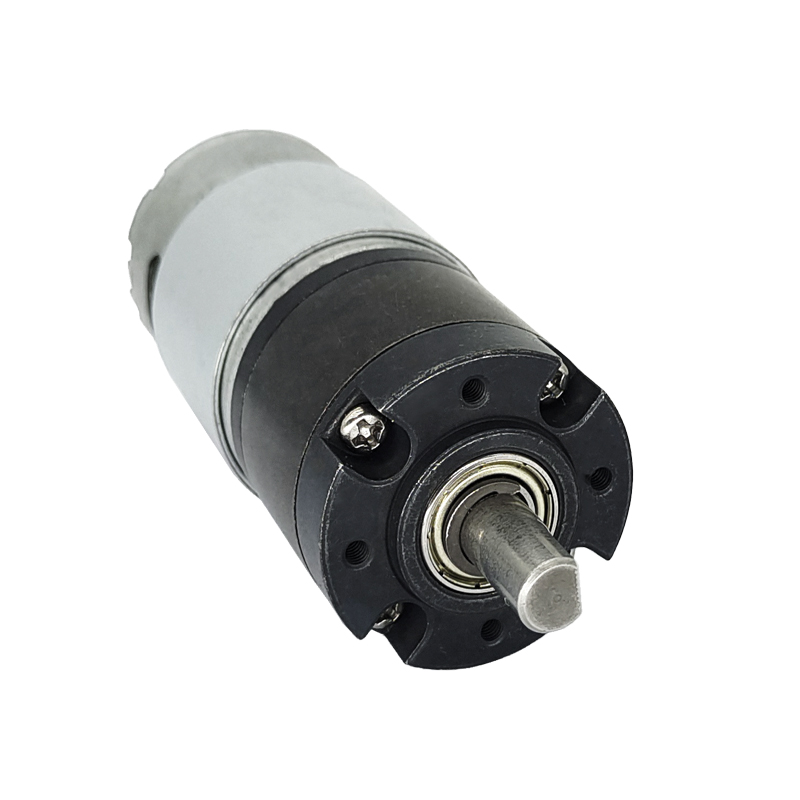

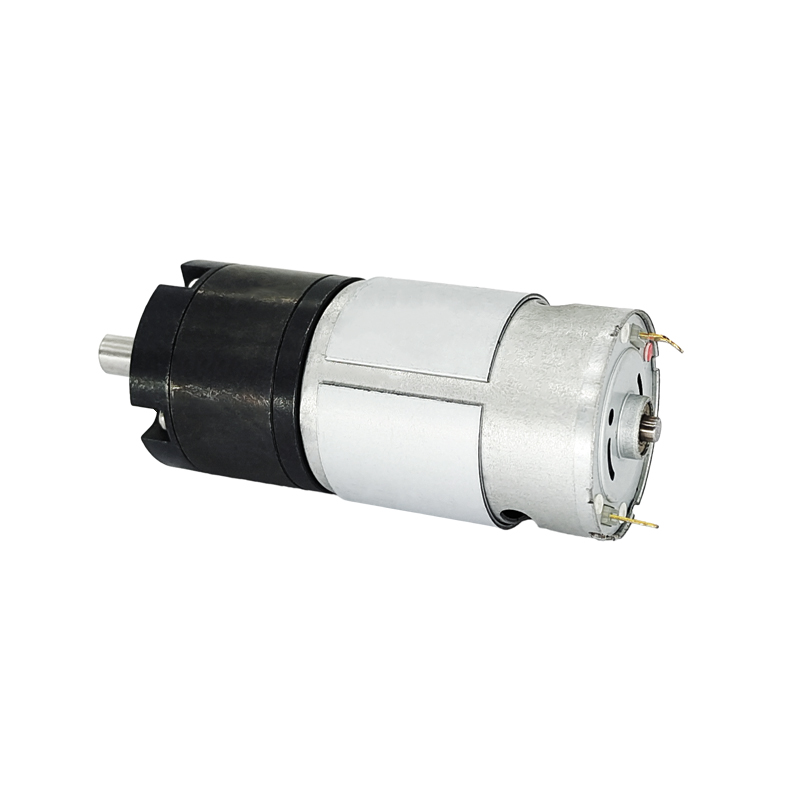

This is a 36mm planetary gear motor from Chaoya designed for coffee machines and grinders. It is capable of outputting about 25kg of torque at a low rotational speed at 24V operating voltage. It uses a combination of a 36mm planetary gearbox and a 550 brushed motor to output a large torque while maintaining power. So that it can be better used in appliances such as coffee machines and bean grinders.
The Chaoya factory in China is equipped with specialised equipment to produce and manufacture these DC motors. There are also testing facilities to test the parameters and performance of these motors. This ensures that the customer receives a product that meets their requirements.
The 36mm planetary gear motors for coffee machines and grinders are ideal for customers with related products, and customers are welcome to consult and communicate with us at Chaoya in order to understand the corresponding parameter requirements and quotations.
| Model | Operating Voltage(V) | No Load | Maximum efficiency | Stall | Rotating Direction | ||||||
| Current (A) | Rotating Speed(RPM) | Torque(g.cm) | current(A) | Rotating Speed(RPM) | Power(W) | Efficiency | Torque(g.cm) | current(A) | |||
| RC-550SH-4550 | 12 | 0.45 | 10300 | 300 | 3.2 | 8600 | 26.5 | 69% | 1820 | 17.2 | CW/CCW |
| RC-550PH-6530F | 14.4 | 1.4 | 20500 | 424 | 7.64 | 17500 | 76.2 | 69% | 2900 | 44 | CW/CCW |
