36mm Brushed DC Gear Motors For Lawn Mower
  • 36mm Brushed DC Gear Motors For Lawn Mower36mm Brushed DC Gear Motors For Lawn Mower
  • 36mm Brushed DC Gear Motors For Lawn Mower36mm Brushed DC Gear Motors For Lawn Mower
  • 36mm Brushed DC Gear Motors For Lawn Mower36mm Brushed DC Gear Motors For Lawn Mower

36mm Brushed DC Gear Motors For Lawn Mower

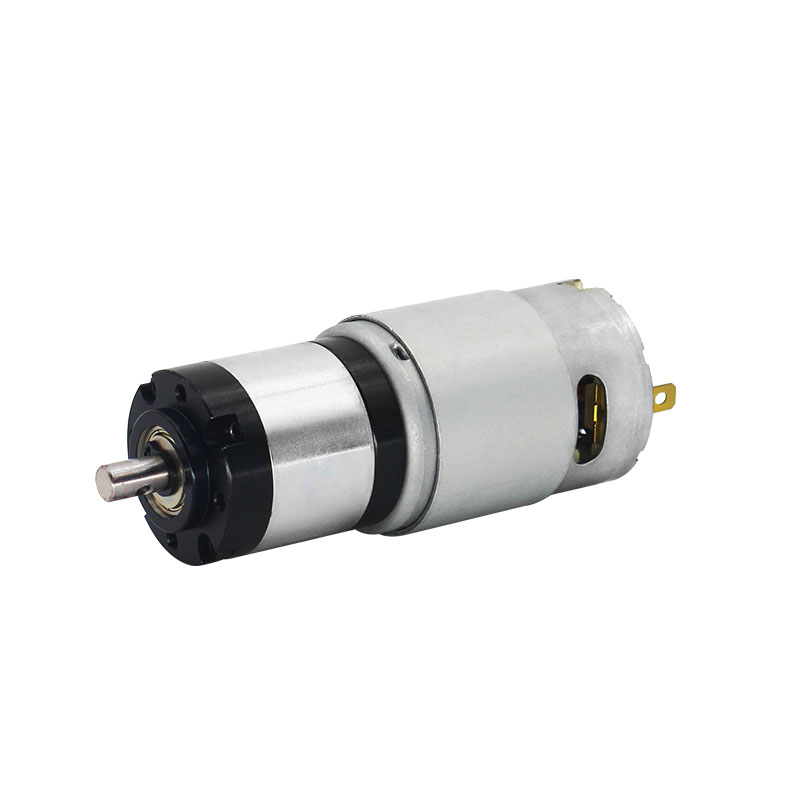

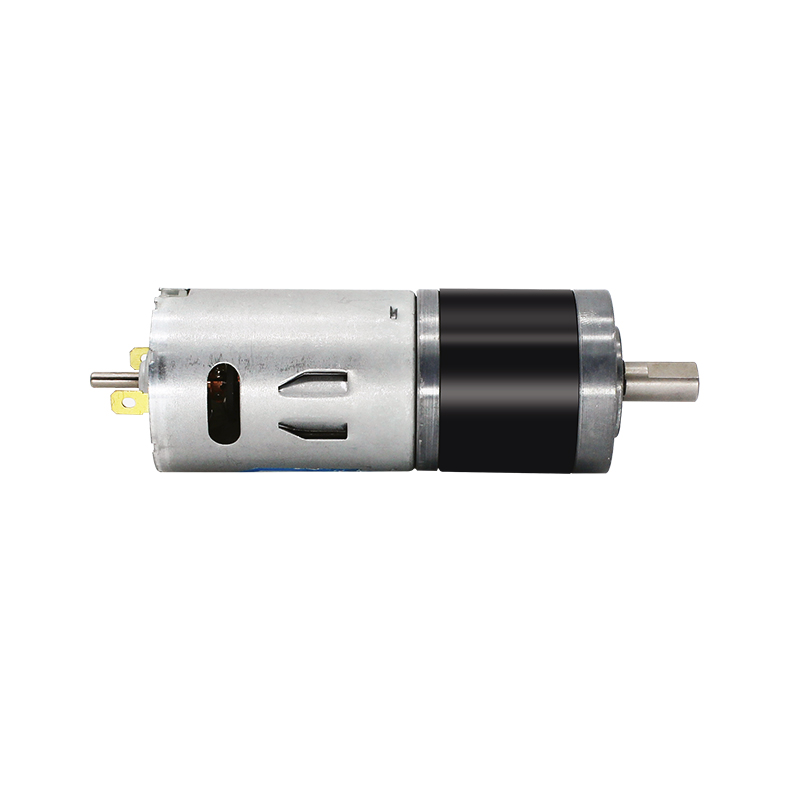

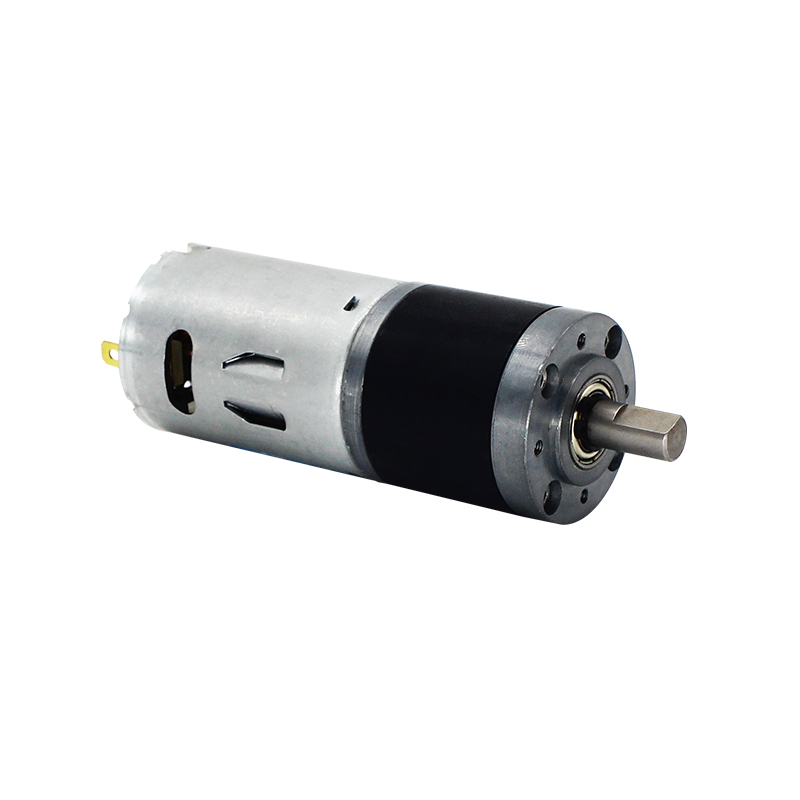

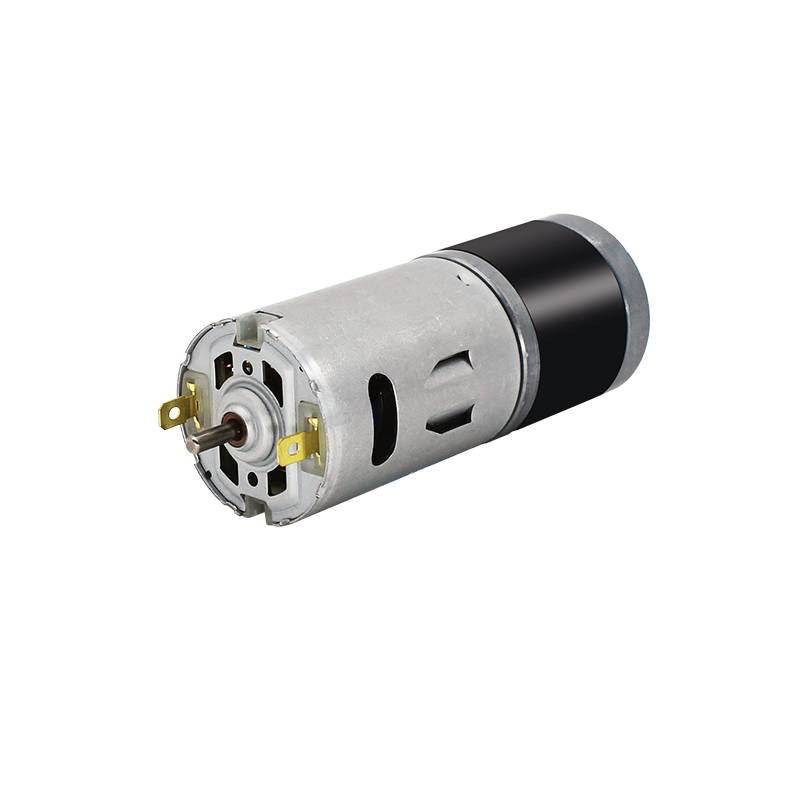

Chaoya is one of the famous China BLDC manufacturers and suppliers, Our factory specializes in manufacturing of 36mm Brushed DC Gear Motors For Lawn Mower.Welcome to wholesale or customized 36mm Brushed DC Gear Motors For Lawn Mower from our factory at any time.36mm Brushed DC Gear Motors For Lawn Mower uses a planetary reduction gearbox with a diameter of 36mm and works perfectly with a brush motor RC555 to provide reliable power output and precise speed control,and is widely used in lawn mowers and other fields.

Send Inquiry

Product Description

As the professional manufacture, chaoya would like to provide you 36mm Brushed DC Gear Motors For Lawn Mower ,which is a high-quality, high-performance motor product produced by chaoya factory in china. It uses a planetary reduction gearbox works perfectly with a brush motor to accurately control the speed and is effectively used in fields such as lawn mowers.36mm Brushed DC Gear Motors For Lawn Mower has strong power output capability and can drive lawn mowers and other equipment to operate efficiently and provide excellent performance.36mm Brushed DC Gear Motors For Lawn Mower is made of high-quality materials to ensure product stability and durability. It is able to withstand long working hours and harsh environmental conditions with excellent durability.36mm Brushed DC Gear Motors For Lawn Mower is equipped with a planetary reduction gearbox,which can achieve adjustable speed and torque output.This makes 36mm Brushed DC Gear Motors For Lawn Mower suitable for different application scenarios and can meet various needs.36mm Brushed DC Gear Motors For Lawn Mower is equipped with a variety of safety protection devices, such as overload protection and overheating protection, to ensure safety during use.


Product Parameters

Model Voltage(V)  No Load Rotating Speed(rpm)  No-load current(mA) Load torque(gf.cm)  Load Rotating Speed(rpm)  Load Current(A)
RC555 24 7500 80 320 6800 0.4


Motor+GearBox Parameters:


Gear Motor Model Reducer Ratio 5.18 27 53 139 /
36PG-RC555 No Load Rotating Speed(rpm)  1448 278 142 54 /
Rated Torque(kgf.cm) 1.49 6.48 11.53 30.25 /
Rated Rotating Speed(rpm) 1313 252 128 49 /


GearBox Parameters:


Step  1st step 2nd step 3rd step fourth step fifth step
Length(mm) 24.9 30.9 37.1 / /
Efficience 90% 81% 73% / /
Reducer Ratio 3.75,  5.18 14,19,27 53,73,100,139 / /
Rated Torque 0.5~3.5
Kgf.cm
3~12
Kgf.cm
12~50
Kgf.cm
Instant Rated Torque 7Kgf.cm 20Kgf.cm 80Kgf.cm
Remark:1.Can be equipped with 5#series brushed motor/36#brushless motor
             2.Operation temperature:-40℃~+80℃
             3.Output shaft can be customized upon request
