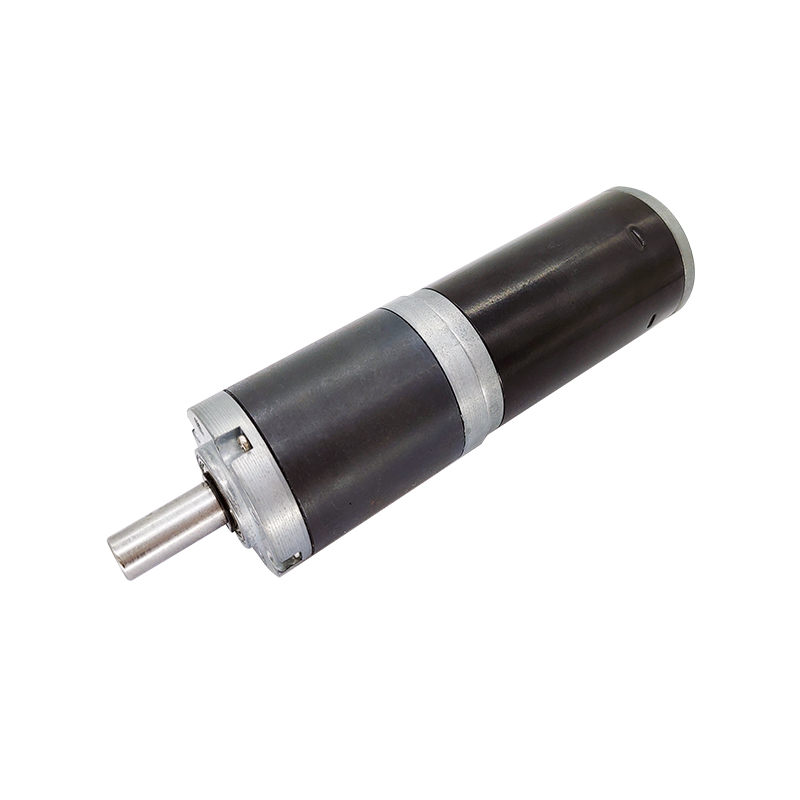

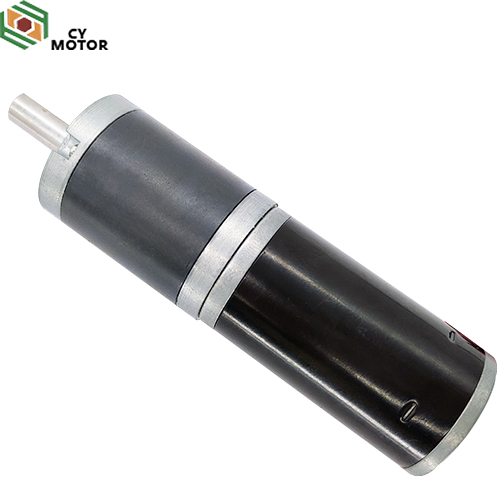

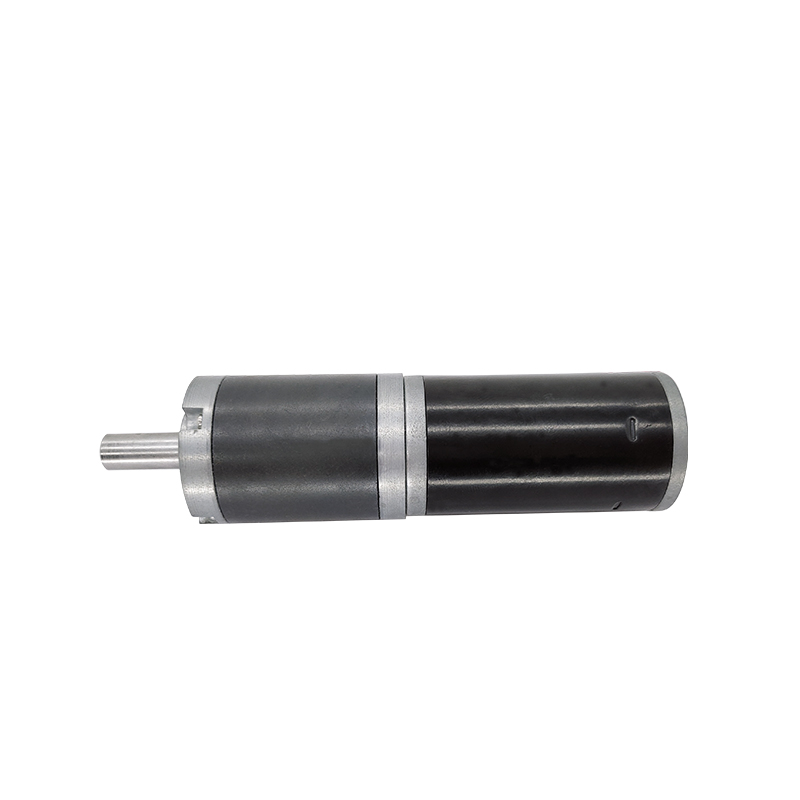

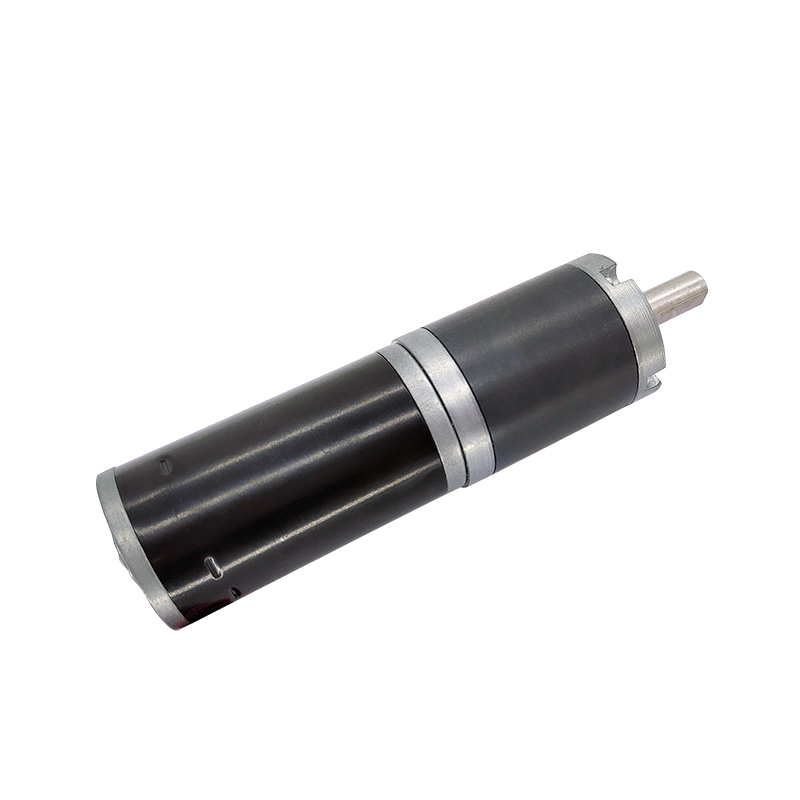

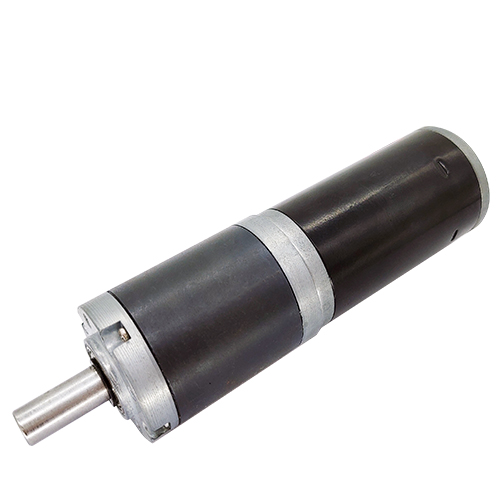

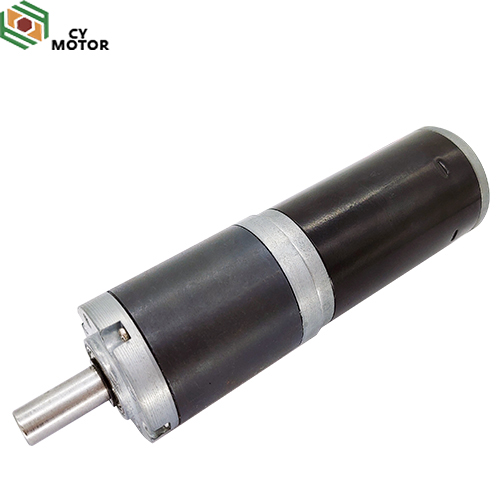

Chaoya company a 32mm brush reducer motor, using 12V or 24V DC power supply, reducer box internal planetary gear structure, can output high torque at low speed, stable performance, small size. Stable performance during operation, can achieve positive and negative rotation function, good quality.
There are many motor products on the market, brush motor, brushless motor, gear motor and other micro motor products are widely popular in the market, because the micro motor is small in size and can meet the performance requirements, so the micro motor still occupies a large proportion in the market. This 32mm brush motor of Chaoya company belongs to one of the micro gear motors. This motor uses a 32mm planetary reducer equipped with 31ZY steel tube motor, which can produce low speed and high torque during the operation of the motor, bringing good performance to the product.
This brush motor can be powered by 12V or 24V DC power supply to drive the motor to run, and the noise generated during the operation is relatively low to meet the relevant noise needs. At the same time, it has the function of positive and negative rotation of the motor, which makes the operation direction of the motor more flexible.
Chaoya company this brush reducer motor products, the use of planetary gearbox structure, planetary gearbox is more widely used in motor products, because of its stable and durable operation, can output larger torque, to the motor performance to bring greater operating efficiency. At the same time, compared with other gear box structures, the operation efficiency is higher, and the torque is greater than that of other gear motor products of related sizes.
| Motor Parameters: | ||||||
| Model | Voltage(V) | No Load Rotating Speed(rpm) | No-load current(A) | Load torque(Kgf.cm) | Load Rotating Speed(rpm) | Load Power(W) |
| 32PG-31ZY | 12 | 571 | 0.35 | 4 | 450 | 15.0 |
| 32PG-31ZY | 24 | 571 | 0.25 | 5 | 450 | 18.0 |
